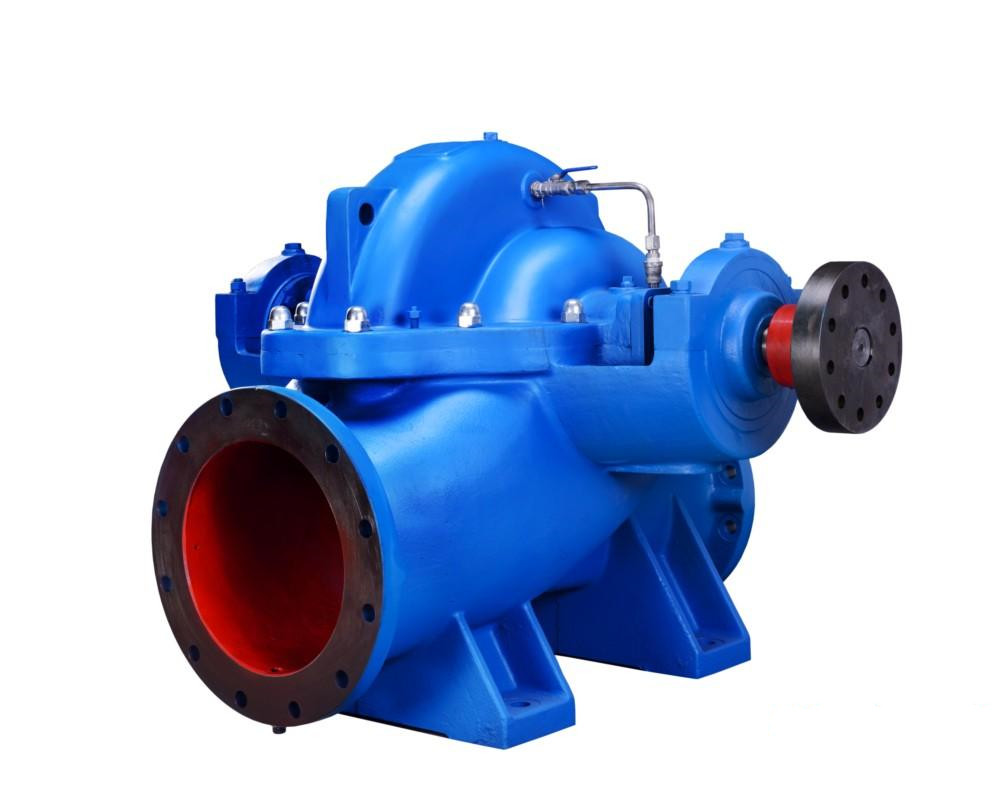

SINGLE-STAGE DOUBLE-SUCTION HORIZONTAL SPLIT CENTRIFUGAL PUMP

Application:

Single-Stage Double-Suction Horizontal Centrifugal Pump is used for conveying water or the physical and chemical properties similar to water and other liquids, is transported liquid temperature shall not be higher than 80 DEG C, suitable for factories, mines, urban water supply, power stations, agricultural irrigation and water conservancy.

Characteristic:
Compact structure,beautiful outline,stable operation,low noise;
Both inlet and outlet of this pump are placed under the axial line,so it is unnecessary to remove the inlet and outlet pipeline and motor;
The shaft seal of water pump has fine mechanical seal and soft stuffing seal,which can be selected according to different condition by user;

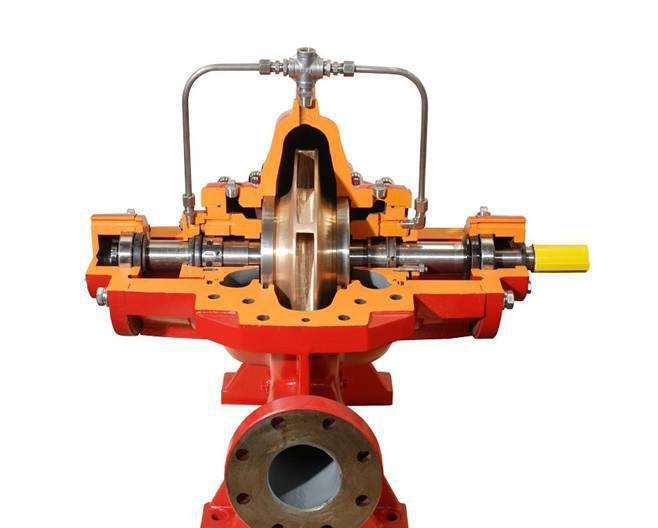

The impeller is static-balance calibrated,fixed on the shaft with round nut,and its axial position can be adjustedvia the round nut;
The pump is direct drived by motor via resilient coupling,it can be drived by internal combustion engine if it is necessary.

 General:

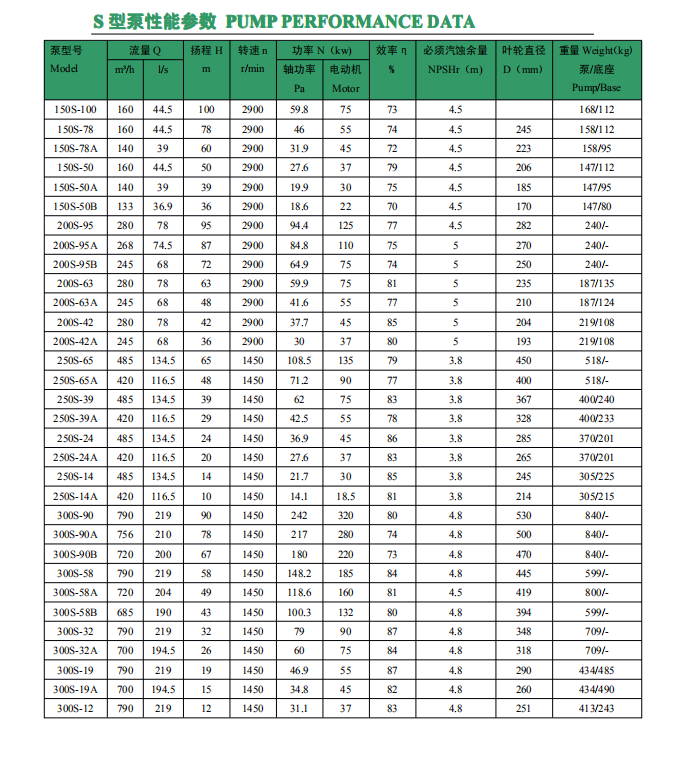

Flow Q:60 ~ 31800m3/h
Lift H:8.5 ~ 140m
Suction caliber: 100 ~ 2200mm
Supporting power: 22KW ~ 5500KW
