Lined pipe

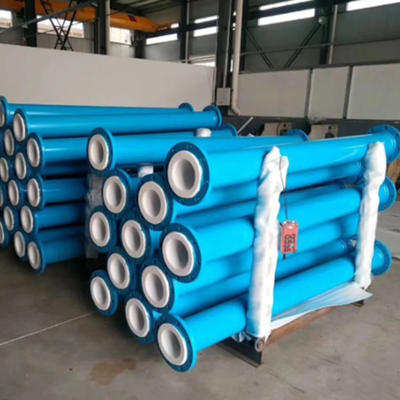

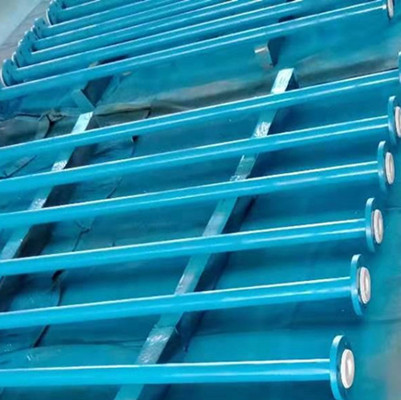

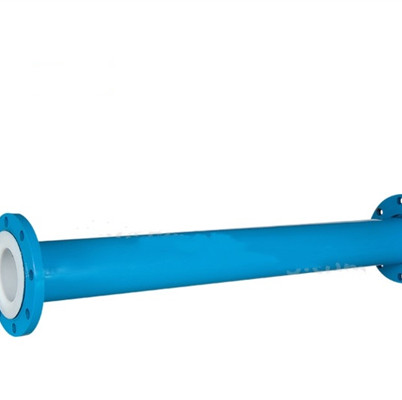

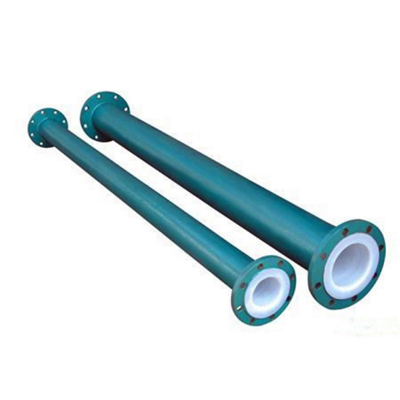

PTFE lined seamless steel pipe
- Standard:ASTM1545/DIN2848/HGT20538
- Lining:PTFE/PFA/FEP/PVDF/PO/PP/PE
- Flange connection:ANSI/DIN
- Product description: PTFE powder with high performance is used to push (squeeze) into the pipe, the surface is chemically treated, and then it is lined into seamless steel tube (the outer diameter of the liner is slightly
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Size Range: DN25~DN40: 100-4000mm
DN50~DN150: 150-5000mm
DN20~DN400: 200-8000mm
Standard followed:
|
Structure length |
QUL07-09(Enterprise's standard) |
| Nominal pressure |
PN1.6(MPa) ANSI 150Lb/JIS 10K |
| Nominal Diameter | DN25~DN400 |
| Flange size | GB/T13927 |
| Pressure test | API 598 |
| Lining material | HG/T 21562(Spark test) |
Lining Material
We offer lining materials like PTFE/PVDF/FEP(F46)/PFA/PO/PPTemperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts

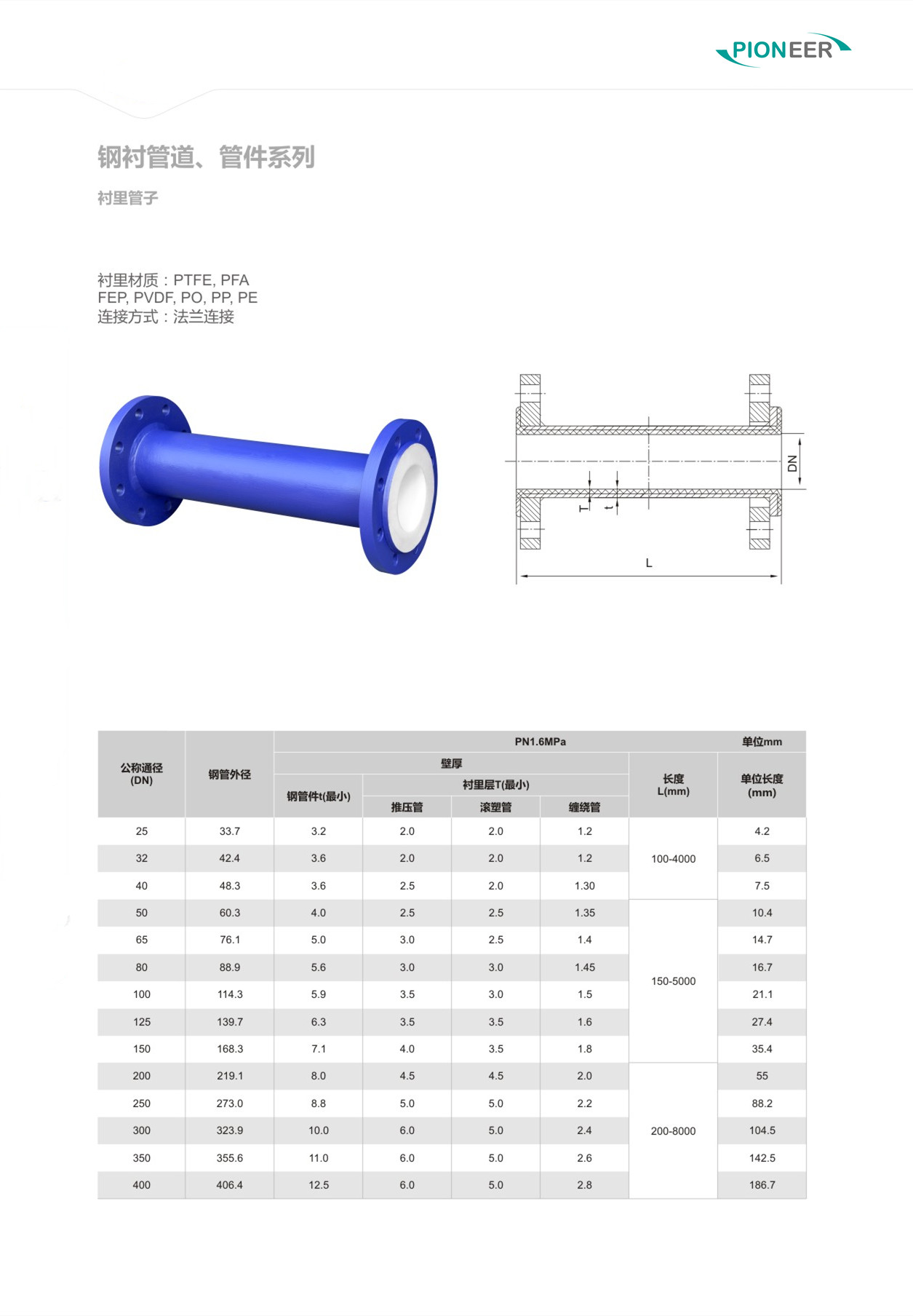

Technical Data:
