JZJ2B vacuum pump system

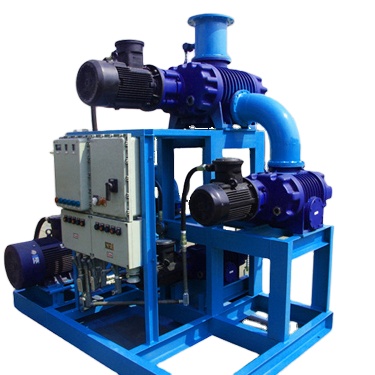

High efficiency, compact structure, no leakage, corrosion resistance, high protection level! The liquid ring Roots unit is composed of a Roots pump as the main pump, a 2BV/2BE1 series liquid ring pump or a Roots-liquid ring unit as the pumping unit of the foreline pump. In addition to being used to remove general gases, it can also pump gases containing moisture, organic solvents or small amounts of dust. Compared with general mechanical vacuum pumps, it is not afraid of oil pollution, and is not afraid of water vapor and fine dust. Compared with general liquid ring vacuum pumps, it has the characteristics of high vacuum and high pumping speed under high vacuum conditions.

Characteristics

liquid ring Roots unit structure features

1.Thanks to the energy efficient 2BV/2BE1/2BE1S seriesliquid ring pumpUsed as a foreline pump, it has the advantages of high efficiency, compact structure, no leakage, corrosion resistance and high protection level.Roots liquid ring vacuum unitThe working fluid of the foreline pump is mostly water, organic solvent (organic solvent such as methanol, ethanol, xylene, acetone, etc.) or other liquid can be used, and the foreline pump is used as a closed loop system, which greatly reduces the environment. The pollution, while greatly improving the recovery of organic solvents. The ultimate vacuum is determined by the saturated vapor pressure of the working fluid.

2.In addition to being used to remove general gases, it can also pump gases containing moisture, organic solvents or small amounts of dust. Compared with general mechanical vacuum pumps, it is not afraid of oil pollution, and is not afraid of water vapor and fine dust. Compared with general liquid ring vacuum pumps, it has the characteristics of high vacuum and high pumping speed under high vacuum conditions.

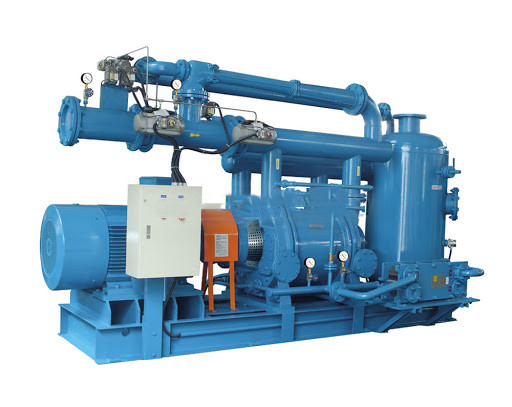

liquid ring Roots unit equipment

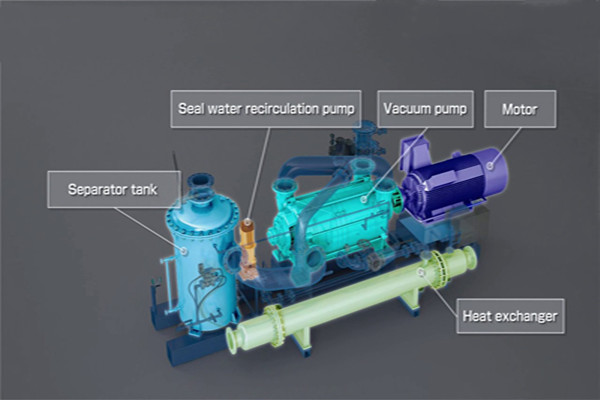

Liquid ring roots unit The main components include: Liquid ring vacuum pump/compressor, Roots pump，Control cabinet, shared chassis, internal pipeline

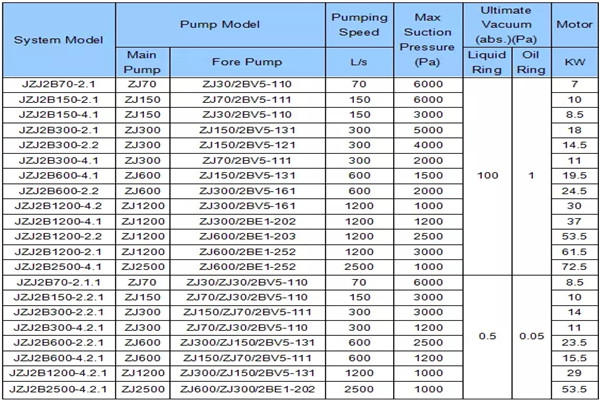

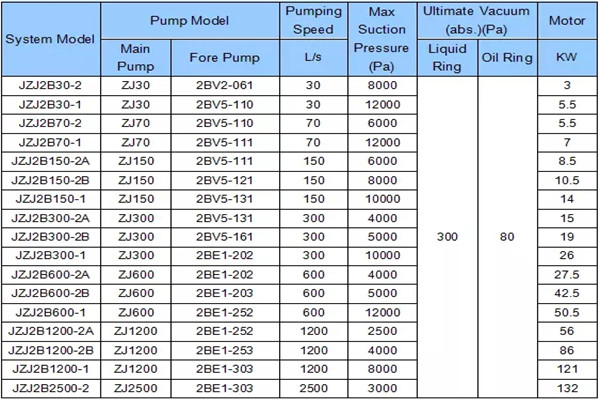

Different configurations, different technical performances, and different effects. The vacuum unit has two, three, four-stage vacuum units, all levels of Roots vacuum pump and liquid ring vacuum pump to form the technical performance of the vacuum unit. Due to different requirements and different conditions, we can recommend according to different process of customers. Select the vacuum unit that suits the requirements. Please contact our sales technical department to provide a solution.

typical application

Roots screw vacuum pump unit Typical applications: chemical and pharmaceutical, semiconductor, solvent recovery, molding, crystallization, dry etching, sputtering, steam recovery, high-altitude simulation
