Ball Valve
JIS standard PFA Lined Ball Valve

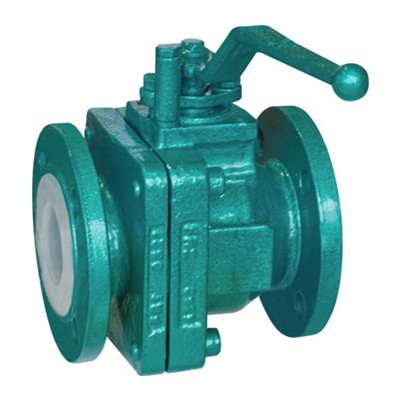

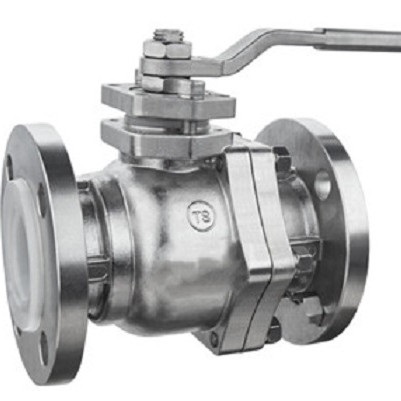

- Product description: Fluorine Polymer Lined Ball Valve-PTFE Lined Ball Valves are generally made from Grey Cast Iron,Cast Ductile Iron Carbon Steel or Stainless Steel with lining. It is a Full Port, Two PC design, Bolted
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
Design and manufacture
API608 6D
Structure length
ASME B16.10
Nominal Diameter
DN15~DN300(mm)
Nominal pressure
JIS 10K
Flange size
ASME B16.5
Pressure test
API 598
Driving mode

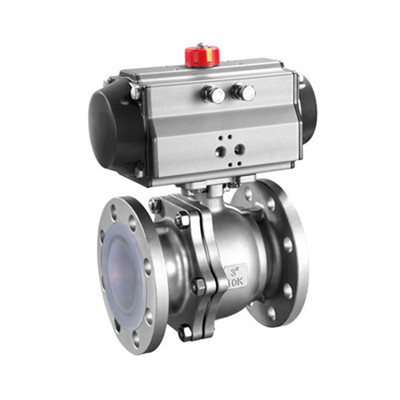

manual, pneumatic, electric, worm gear
Lining Material
We offer lining materials like PTFE,FEP,PFA,PVDF,PE,PO,PP.
Temperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts.

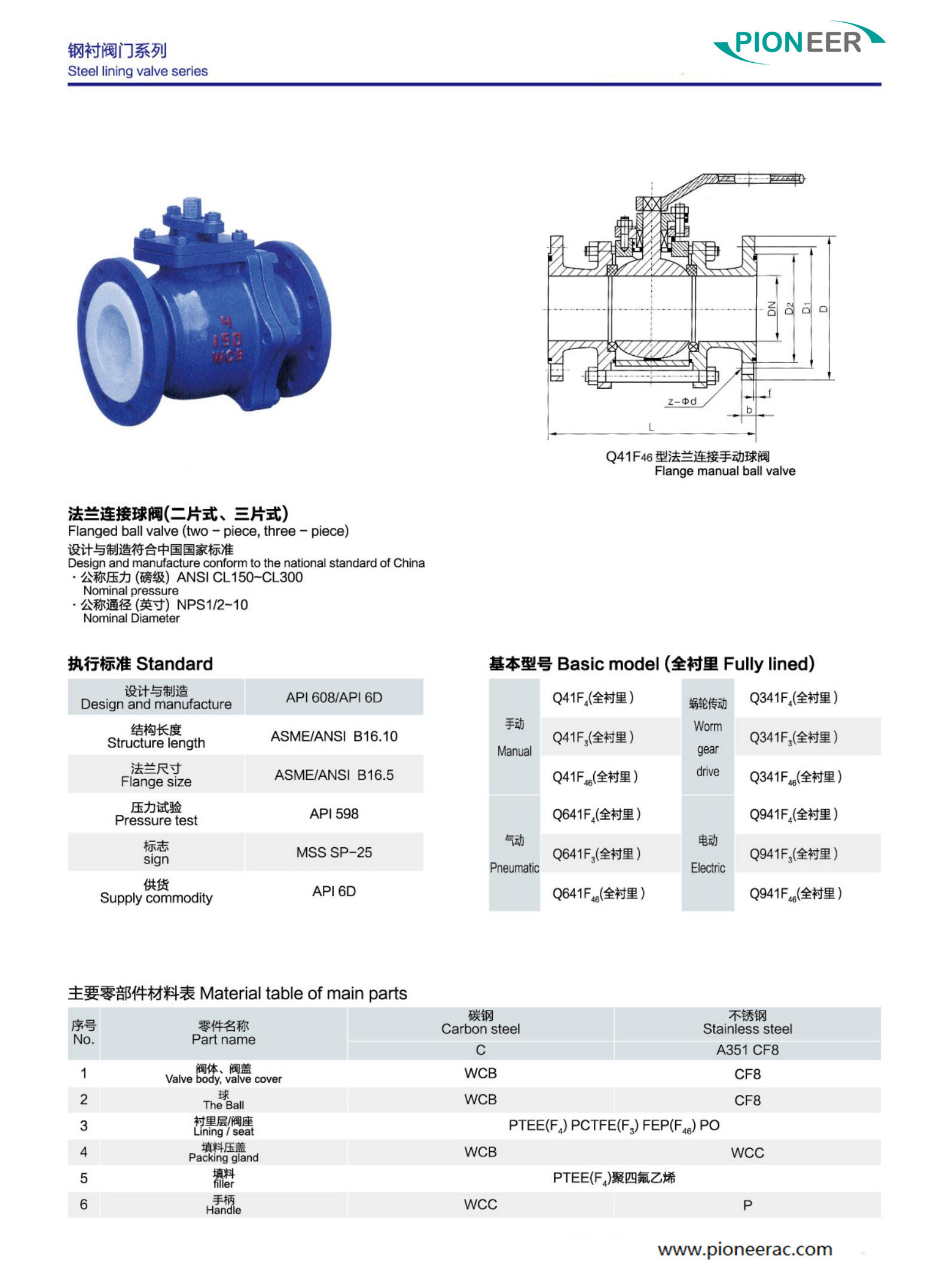

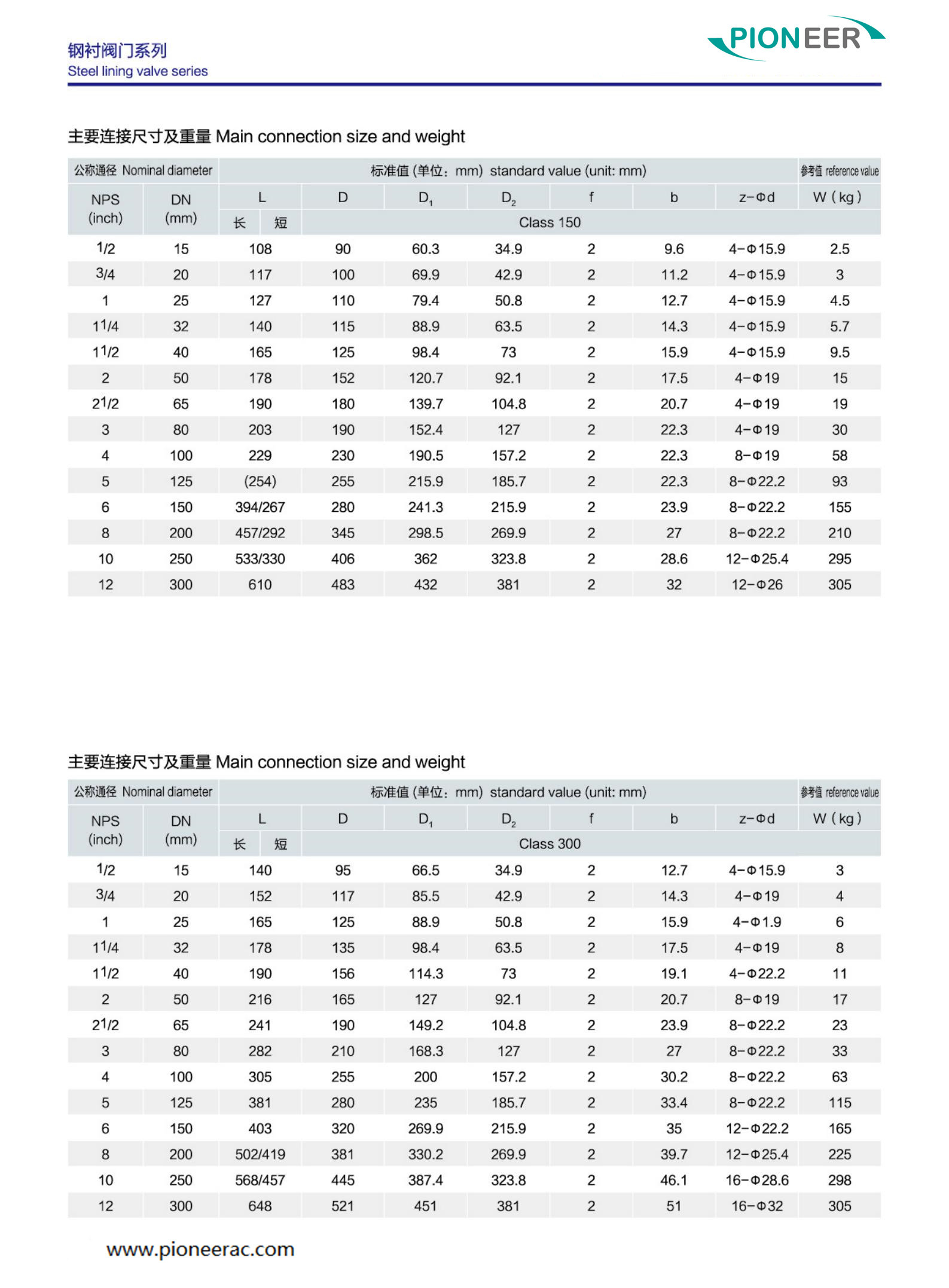

Technical Data:
