Gate Valve

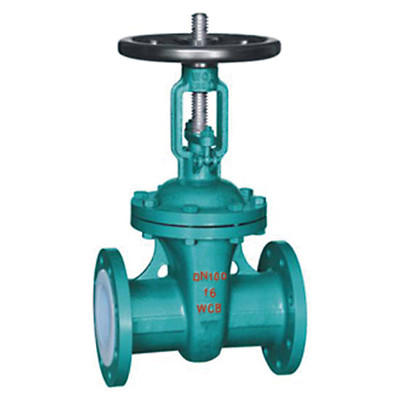

Z41F46-16C Gate Valve
- Product description: Wedge gate valve is one of the most common opening and closing valves. It uses wedge-shaped gate plates sealed on both sides to connect or cut off the medium in the closing path.Wedge gate valve does
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
|
Design and manufacture |
GB/T12234 |
|
Structure length |
GB/T 12221(long seriese)/GB/T3704 |
|
Nominal Diameter |
DN15~DN500(mm) /1/2"~24" |
|
Nominal pressure |
PN0.6~4.0(MPa) ANSI CL150~300 |
|
Flange size |
GBT9113.1 ASME B16.5 |
|
Pressure test |
GB/T 13927 |
|
Driving mode |

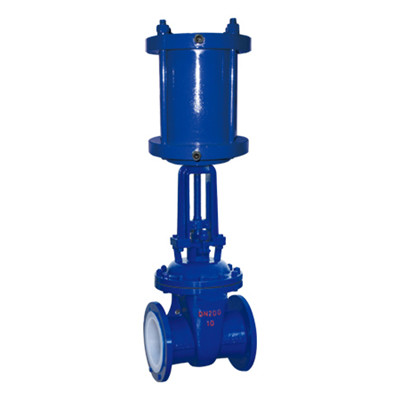

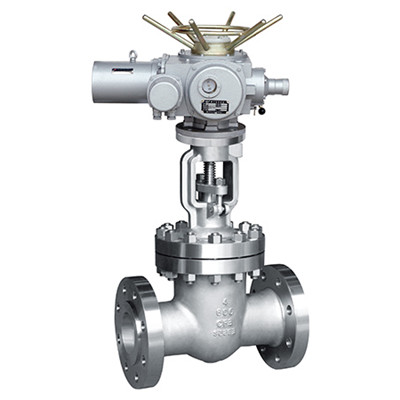

manual,electric, pneumatic |
Lining Material:
We offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M
Temperature:PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts.

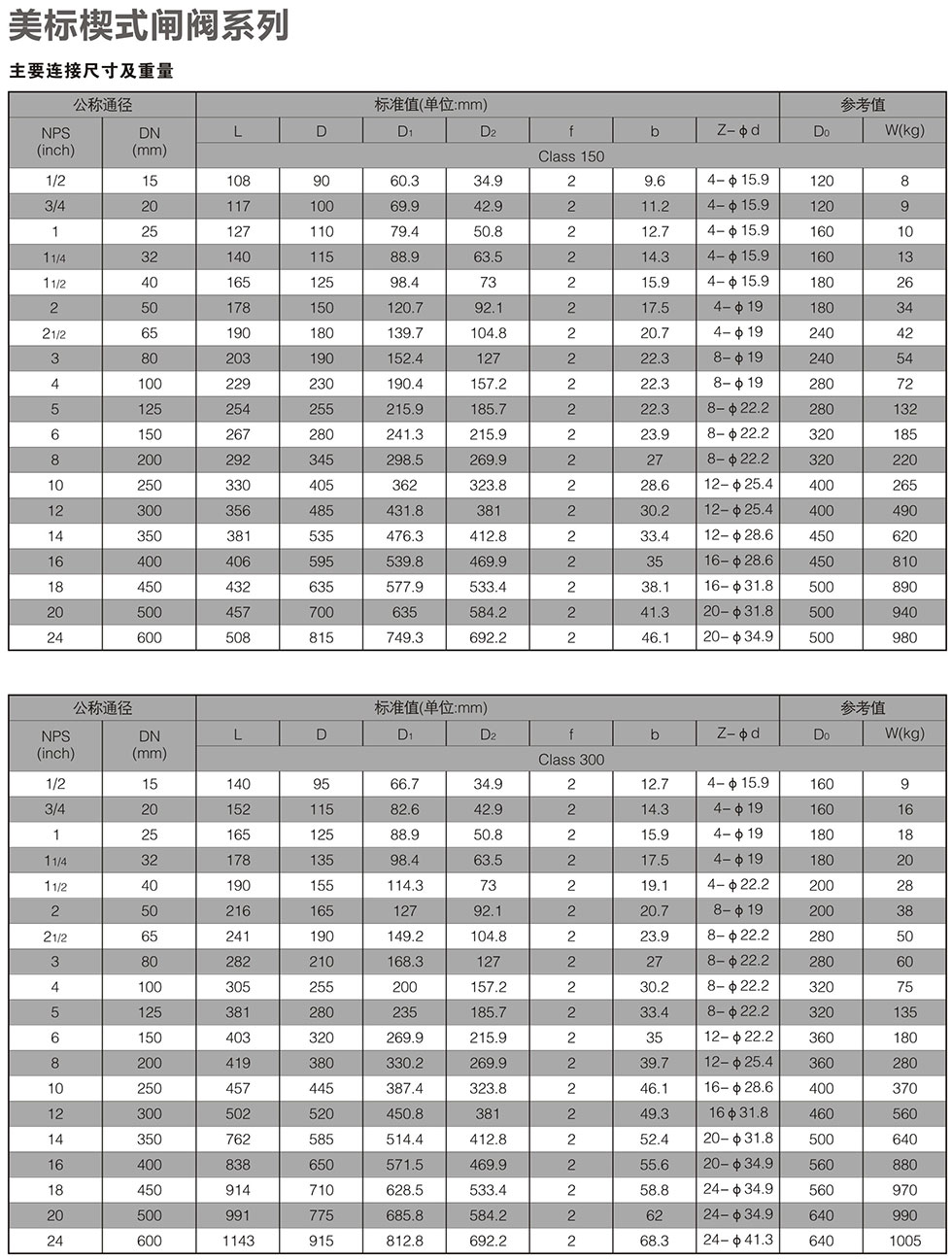

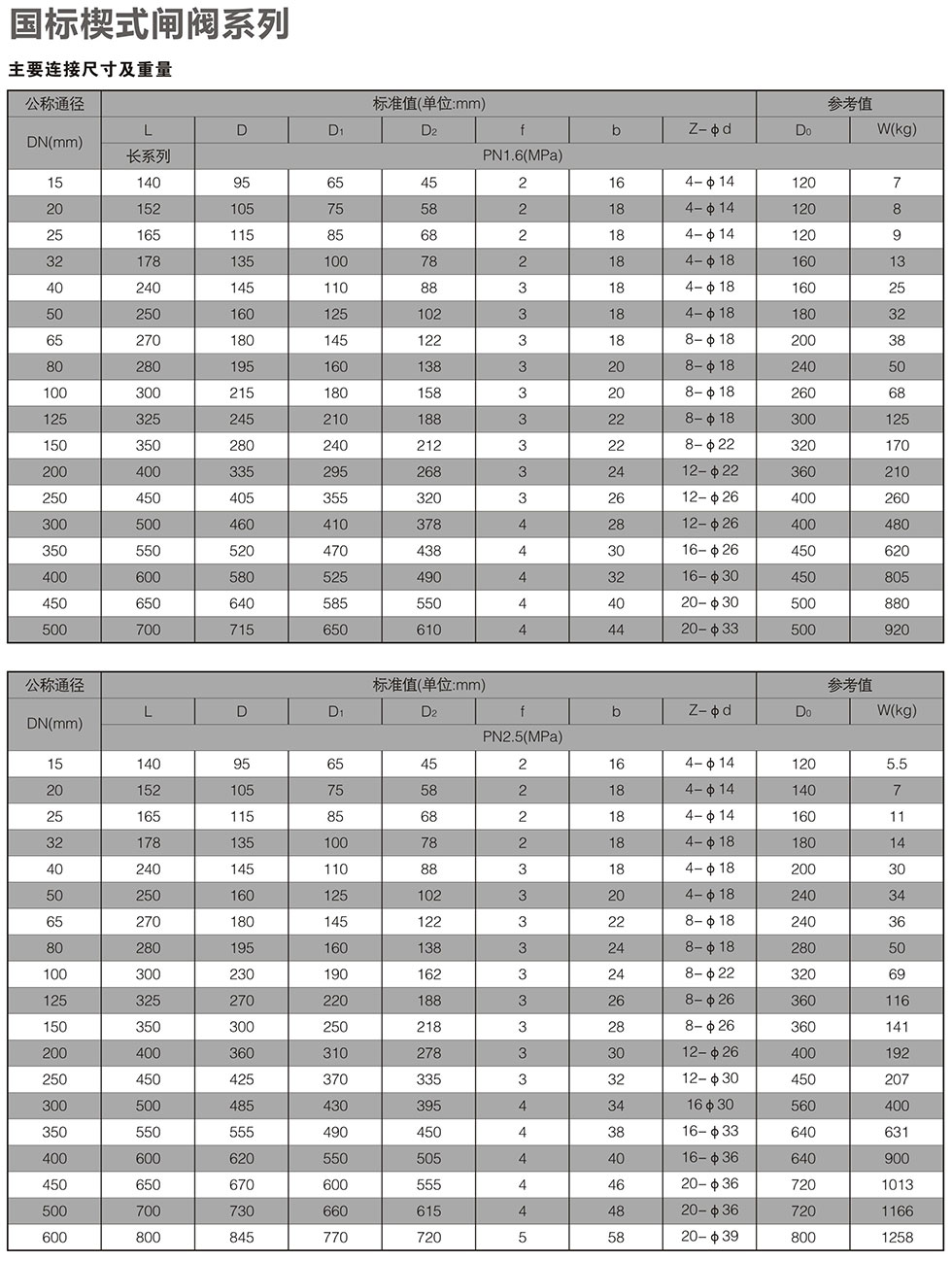

Technical Data:
