Butterfly Valve

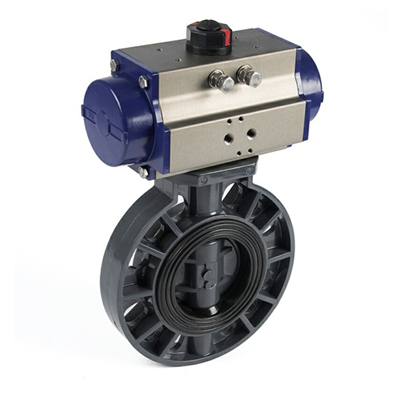

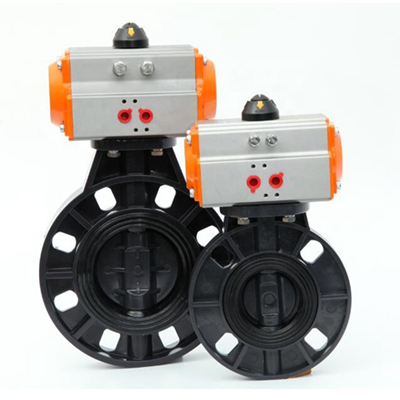

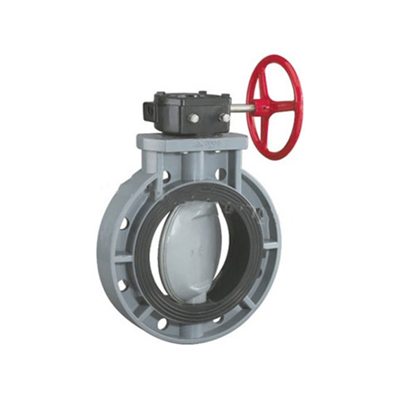

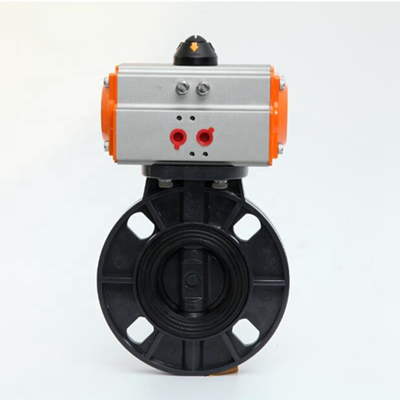

PVC Butterfly Valve
- Product description: Plastic Butterfly Valve,High Performance,Tight Shut Off,Bi-directional,Flanged,Wafer or Lug Style.suitable for chemical corrossion & temperature resistance.
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Feature & Benefits:
* Valve body light weight, strong corrosion resistance
* Compact and beautiful appearance* The body is light and easy to install
* High corrosion resistance, wide application range
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products
Standard followed:
Manufacture and design
GB/T 12238(center line)/API609
Nominal diameter
DN40-600(mm)
Working pressure
PN0.5-0.7MPa
Pressure test
150#, JIS10K,PN10
Connection
Flange,wafer
Temperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C

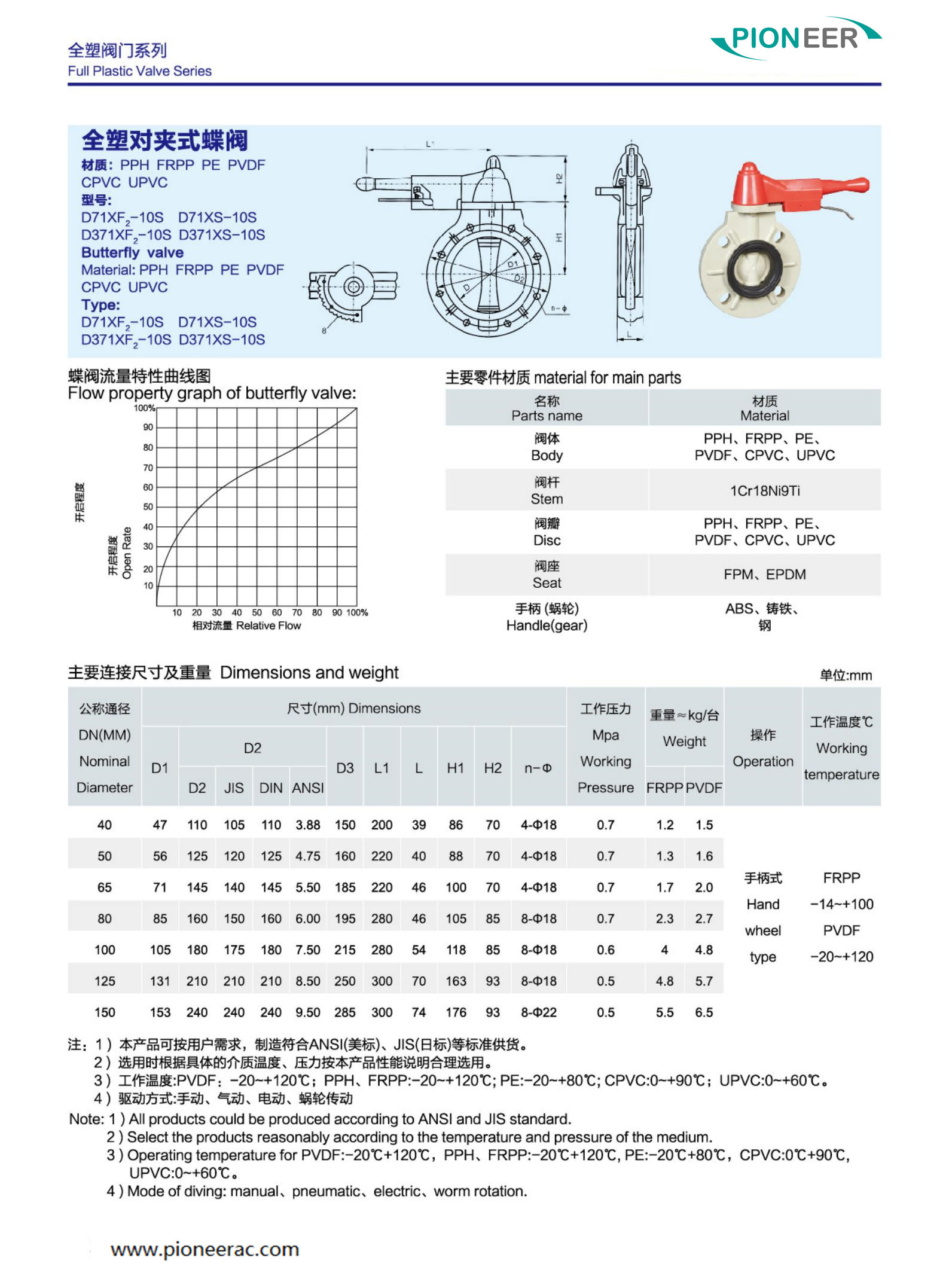

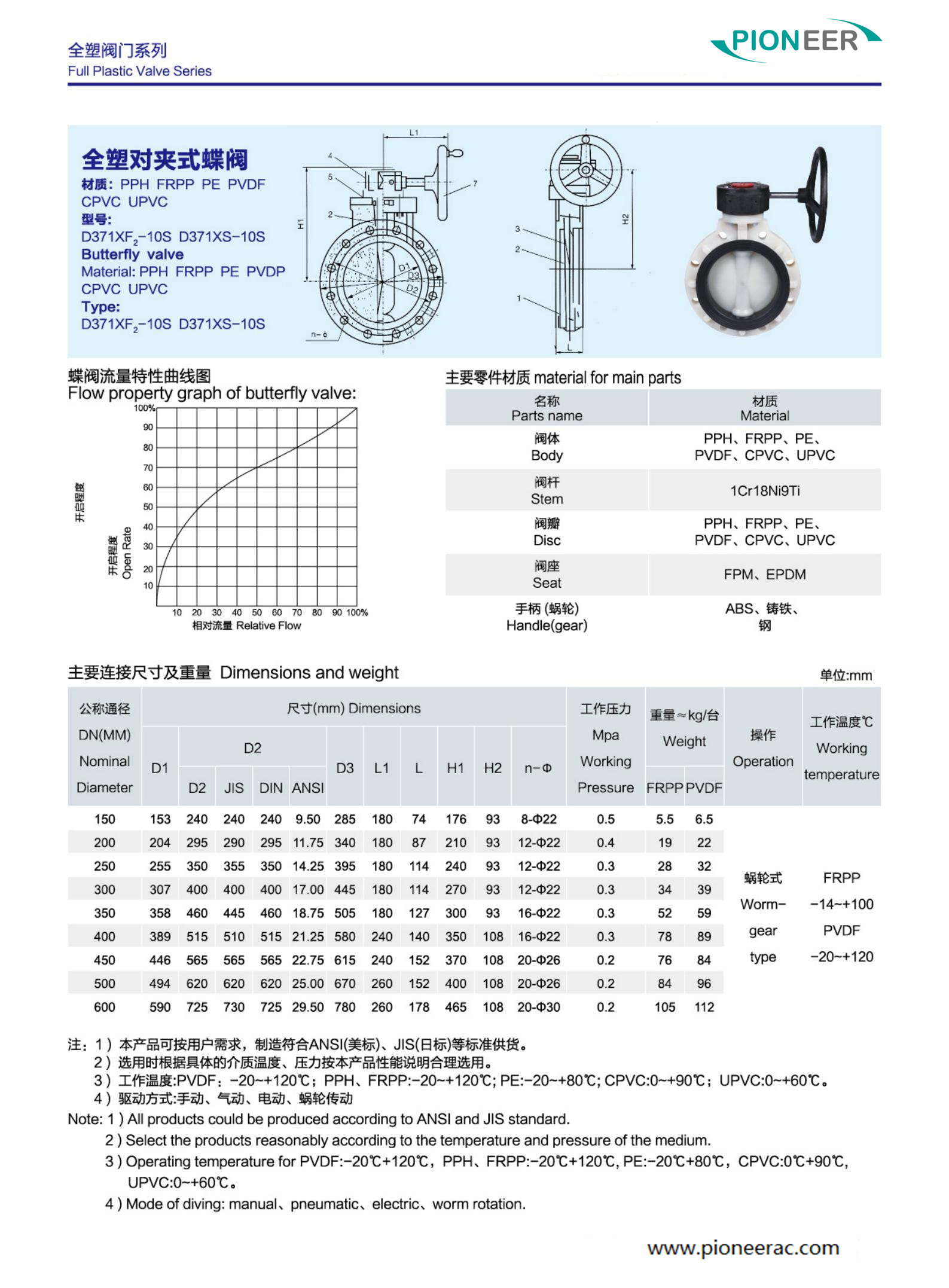

Technical Data:
