Lined Expansion joint

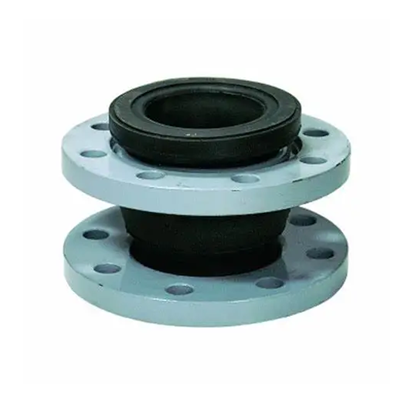

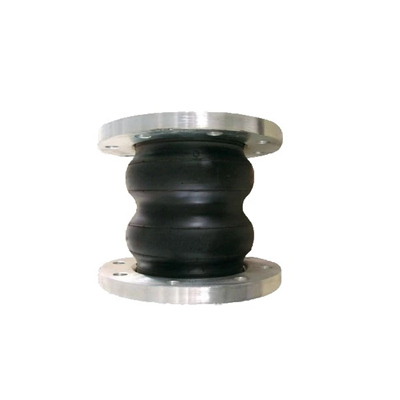

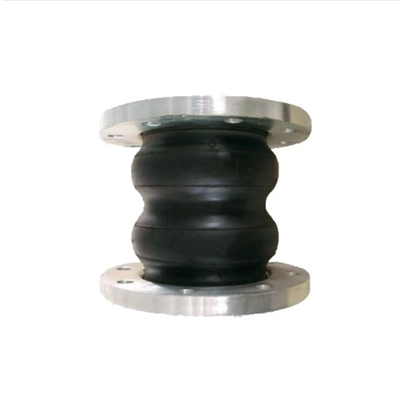

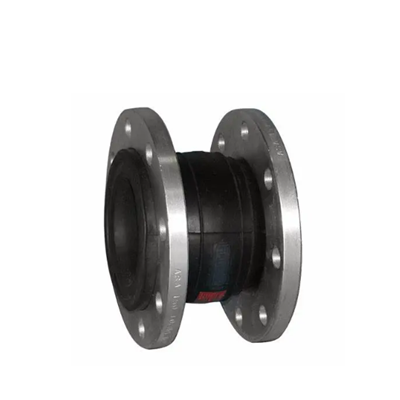

PTFE Lined Rubber Ripple Expansion Joint
- Product description: Expansion joint is also called bellows or compensators, which are designed for axial, lateral and angular movements, misalignment and/or vibration in piping systems.
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
| Manufacture and design | GB/T 26121 |
| Nominal pressure |
PN10(MPa) ANSI 150Lb/JIS 10K |
| Nominal pressure | DN25-DN2000 |
| Flange size | GB/T9113.1/ASME B16.5/JIS B2220/JB/T79 |
| Pressure test | GB/T 15700 |
| Lining material | HG/T 21562(Spark test) |
Lining Material
We offer lining materials like PTFE/PVDF/FEP(F46)/PFA/PO/PPTemperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts

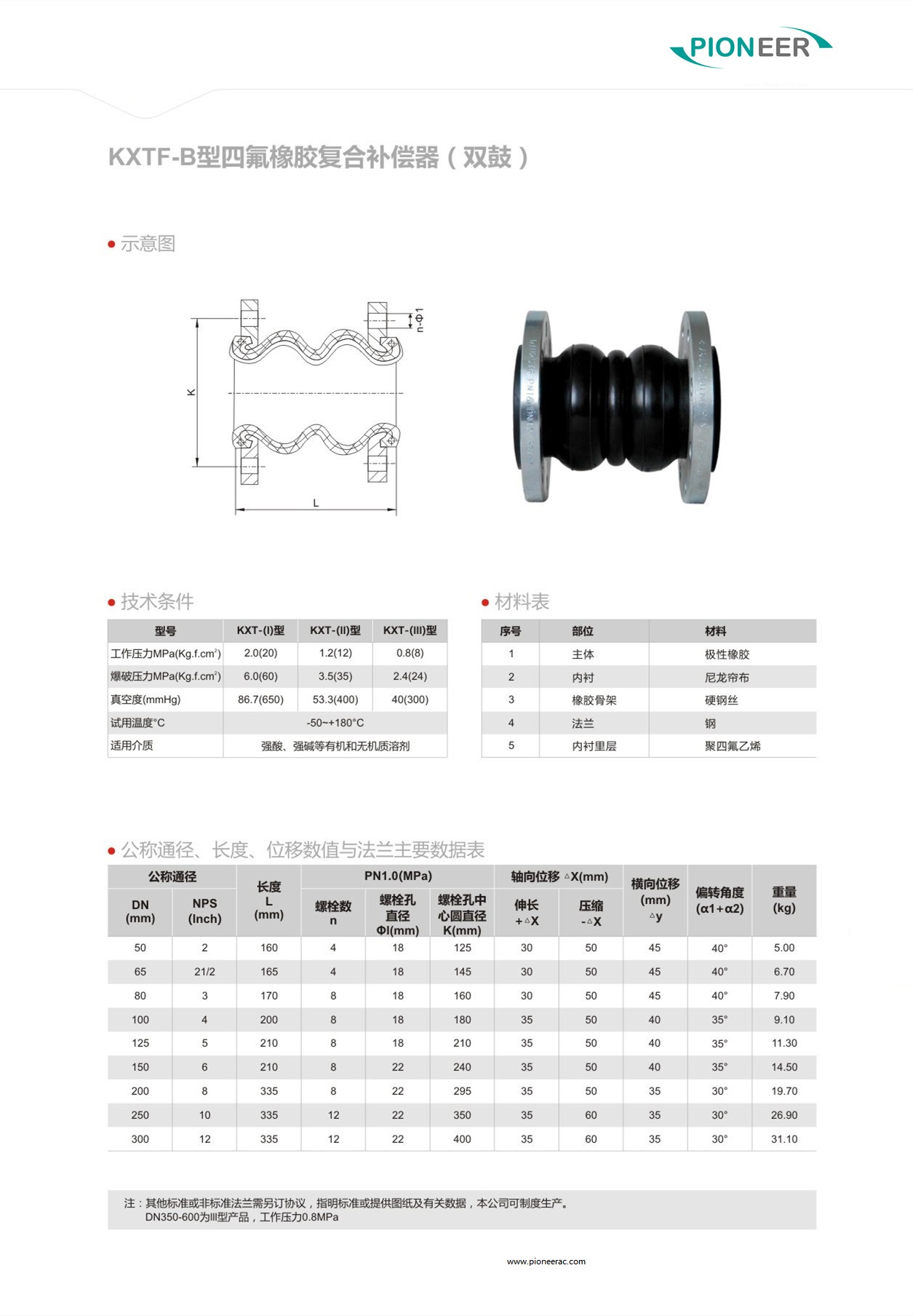

Technical Data:
PREVIOUS：PTFE Lined Rubber Expansion Joint
NEXT：PTFE Lined Fexible Hose
