PPH Fittings

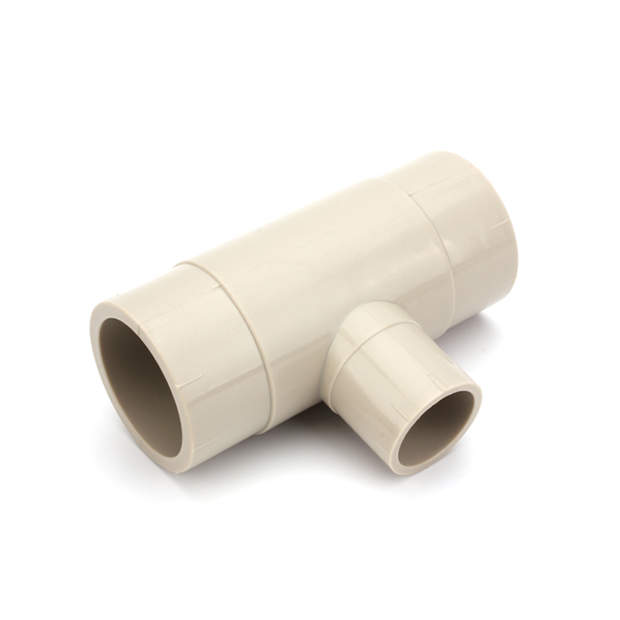

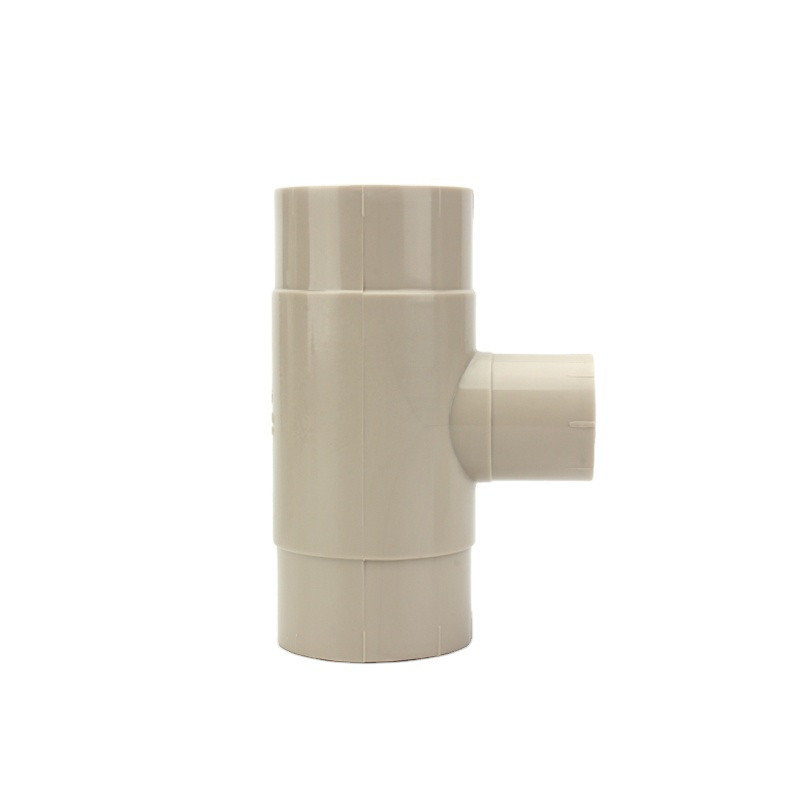

PPH Reducing Tee
- Product description:
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
| Manufacture and design | DIN 8077/8078,ISO |
| Nominal diameter |
d25/20~63/50,90/32-250/160(mm) |
|
Nominal pressure |
PN10(MPa) |
|
Pressure test |
DIN, JIS10K ISO |
| Connection |
Butt,socket welding |
Benefits&Features：
* Good weld ability
* High creep resistance
* Expansive application area
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products
Pressure Rating:
S-5/SDR11, PN10/ISO
Temperature:
*PP-H/FRPP: -20°C ~ 110°C
*PP-H/FRPP: -20°C ~ 110°C
* PE: -20°C ~ 80°C
*PVDF:-50°C ~ 150°C
*CPVC:0°C ~ 90°C
*CPVC:0°C ~ 60°C
Joining Technology
* Butt, Socket welding
Standard
* DIN 8077/8078
Materials:
* Beta Polypropylene Homopolymer (Beta PP-H)
