Ball Valive

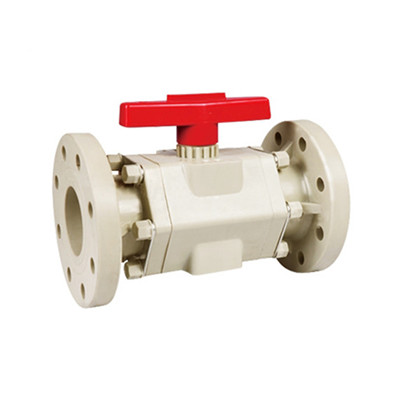

PP-H Ball Valve
- Product description: Plastic Ball Valve,High Performance,Tight Shut Off,Bi-directional,Flanged,thread or socket Style.suitable for chemical corrossion & temperature resistance.
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Feature & Benefits:
* Valve body light weight, strong corrosion resistance
* Compact and beautiful appearance* The body is light and easy to install
* High corrosion resistance, wide application range
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products
Standard followed:
| Manufacture and design | GB/T 12238(center line)/API609 |
| Nominal diameter |
DN15~300(mm) |
| Working pressure | PN0.6~1.2MPa |
|
Pressure test |
150#, JIS10K,PN10 |
|
Connection |
Flange,thread, socket |
Temperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C

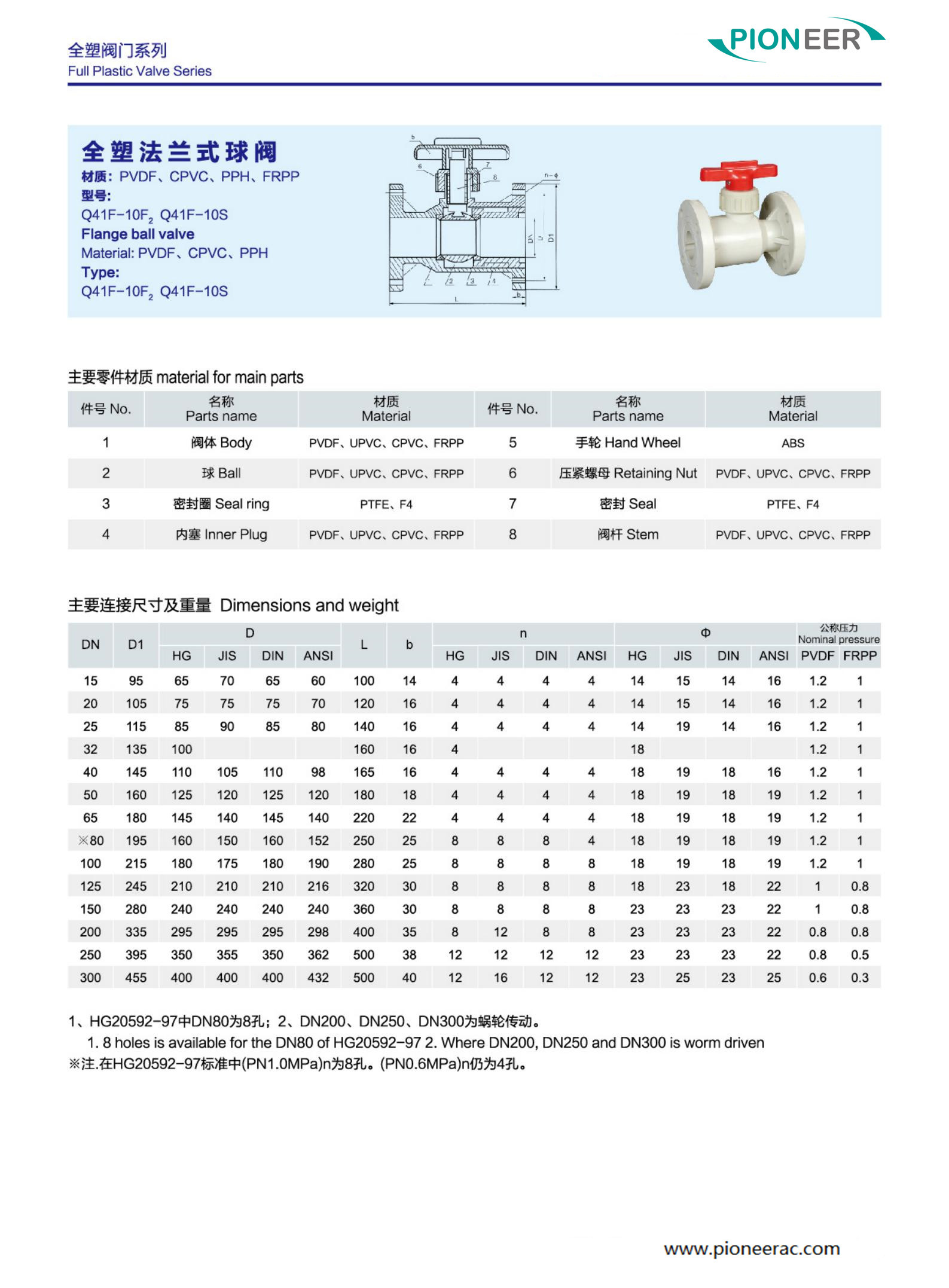

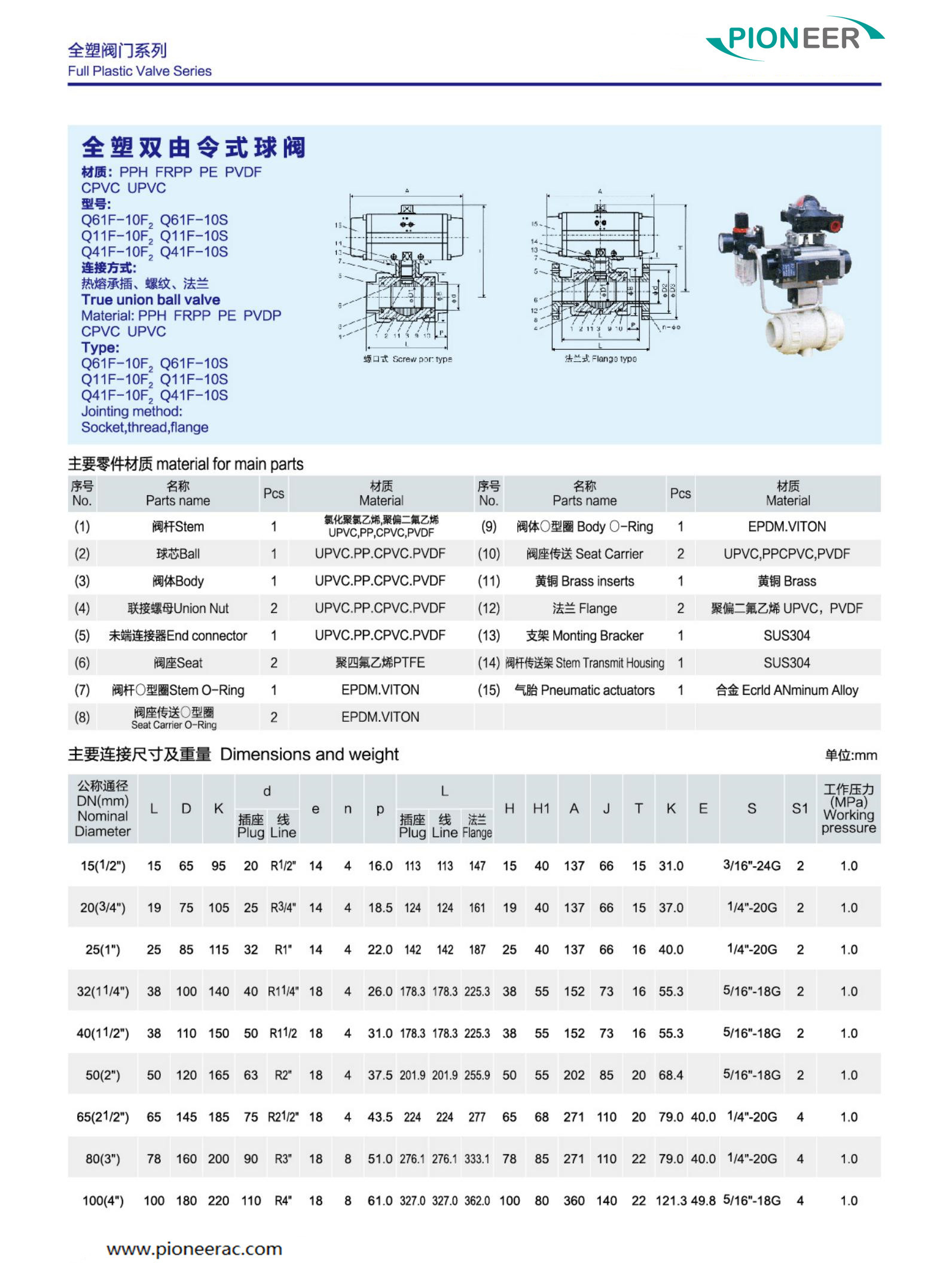

Technical Data:
PREVIOUS：PVC Ball Valve
NEXT：PVDF Ball Valve
