Globe Valve

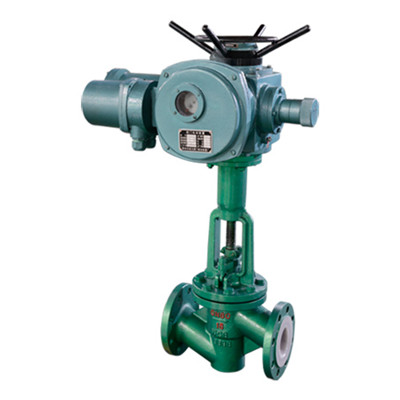

J941 F46-16C Electrical Globe Valve
- Product description: Diaphragm valve is a kind of special form, which has the function of truncation valve, the opening and closing by steel disc and soft material (rubber and fluorine plastic compound) of diaphragm and t
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
|
Design and manufacture |
GB/T12233/GB/T12235 |
|
Structure length |
GB/T 12221(long seriese)/GB/T3704 |
|
Nominal Diameter |
DN15~DN350(mm) |
|
Nominal pressure |
PN0.6~1.6(MPa) |
|
Flange size |
HG/T20592 |
|
Pressure test |
GB/T 13927 |
|
Driving mode |
manual,electric, pneumatic |
Lining Material:
We offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M
Temperature:PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts.
Technical Data:
