Globe Valve

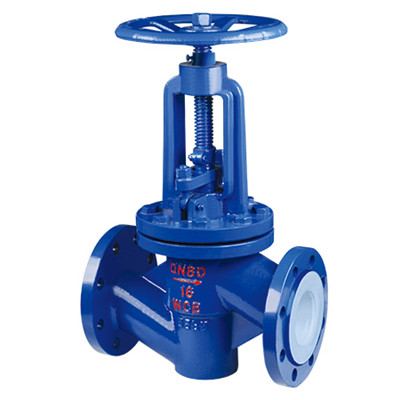

J41F46-16C Globe Valve
- Product description: Globe valve refers to the closing piece (disc) driven by the stem and along the center line of the seat of the valve movement, in the pipeline is mainly used to connect or cut off the medium in the pi
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
|
Design and manufacture |
GB/T12233/GB/T12235 |
|
Structure length |
GB/T 12221(long seriese)/GB/T3704 |
|
Nominal Diameter |
DN15~DN300(mm) |
|
Nominal pressure |
PN0.6~1.6(MPa) |
|
Flange size |
HG/T20592 |
|
Pressure test |
GB/T 13927 |
|
Driving mode |
manual,electric, pneumatic |
Temperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining Thickness
Min. 3.0mmSpark Test
Body liners & all wet parts are tested for spark at 15,000 Volts.
Technical Data:
PREVIOUS：J41F46-16C Globe Valve
NEXT：J45F46-16C Globe Valve
