Ball Valve

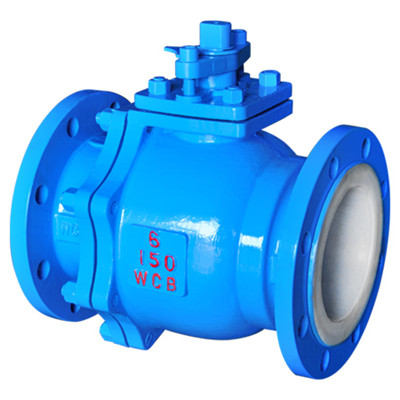

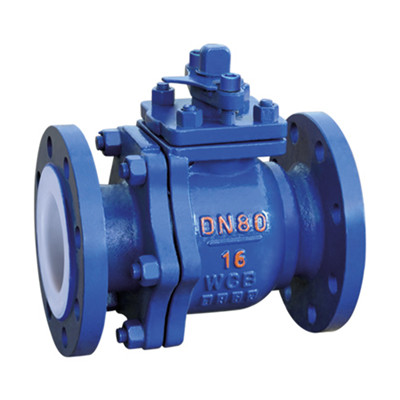

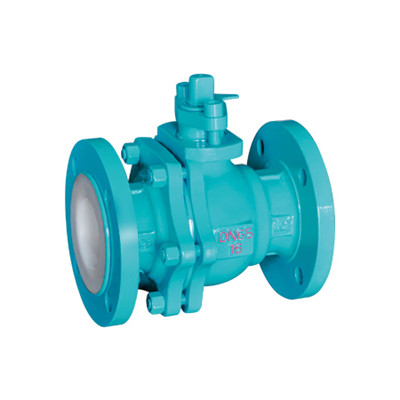

Q41F46-16C Ball valve
- Product description: PTFE Lined Ball Valves are generally made from Grey Cast Iron,Cast Ductile Iron Carbon Steel or Stainless Steel with lining. It is a Full Port, Two PC design, Bolted Body Construction with Integral Ba
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
|
Design and manufacture |
GB/T 12237 |
|
Structure length |
HG/T 3704 |
|
Nominal Diameter |
DN15-DN350(mm) |
|
Nominal pressure |
PN0.6~1.6(MPa) |
|
Flange size |
HG/T20592 |
|
Pressure test |
GB/T 13927 |
|
Driving mode |

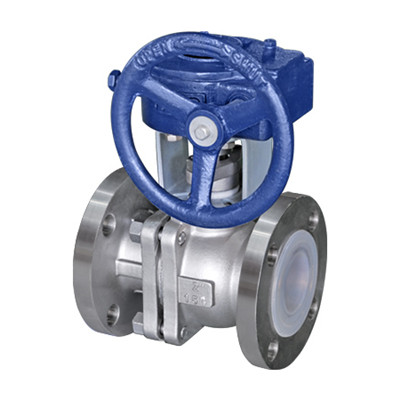

manual, pneumatic, electric, worm gear |
Lining Material
We offer lining materials like PTFE,FEP,PFA,PVDF,PE,PO,PP.
Temperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts.

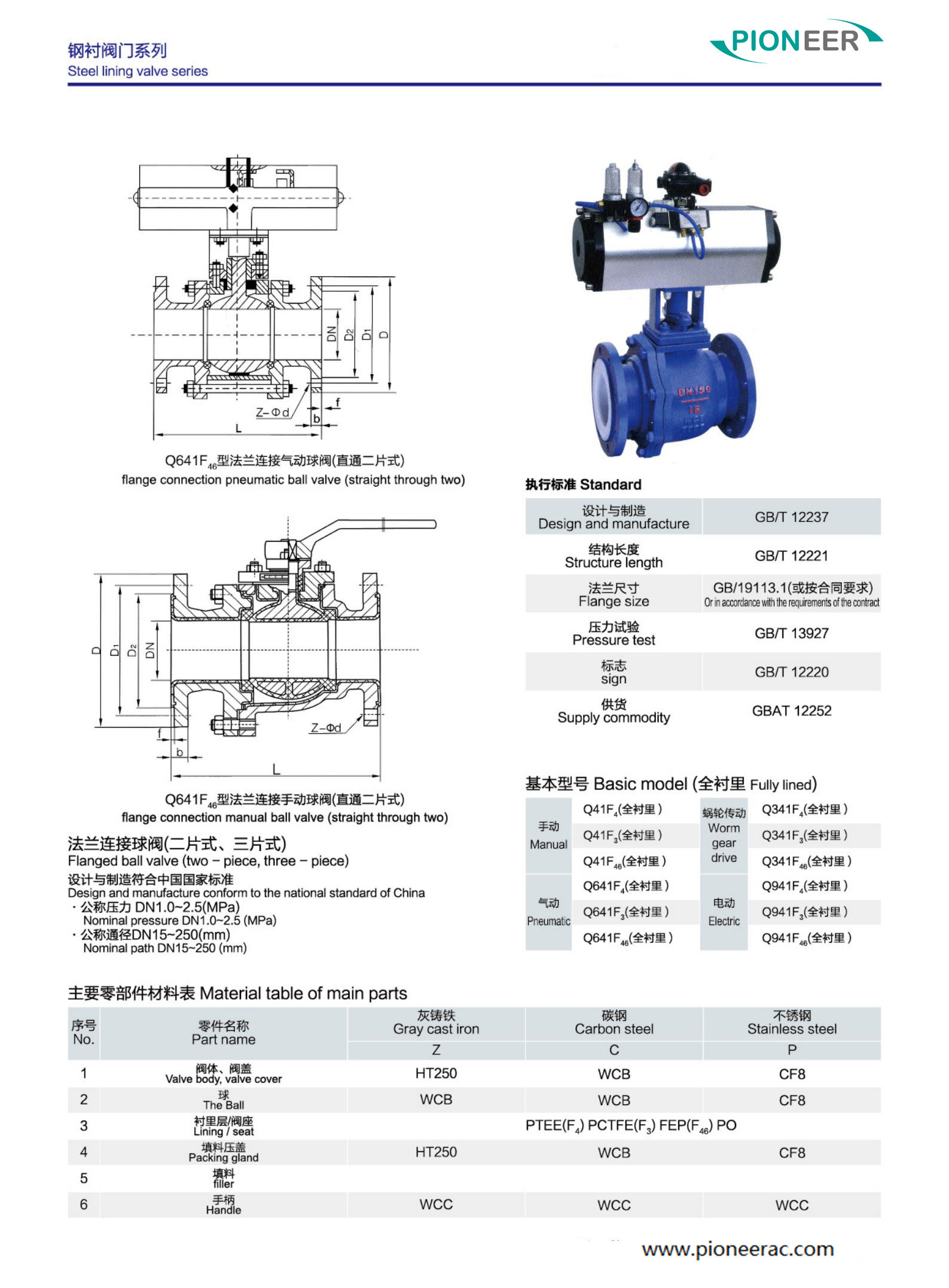

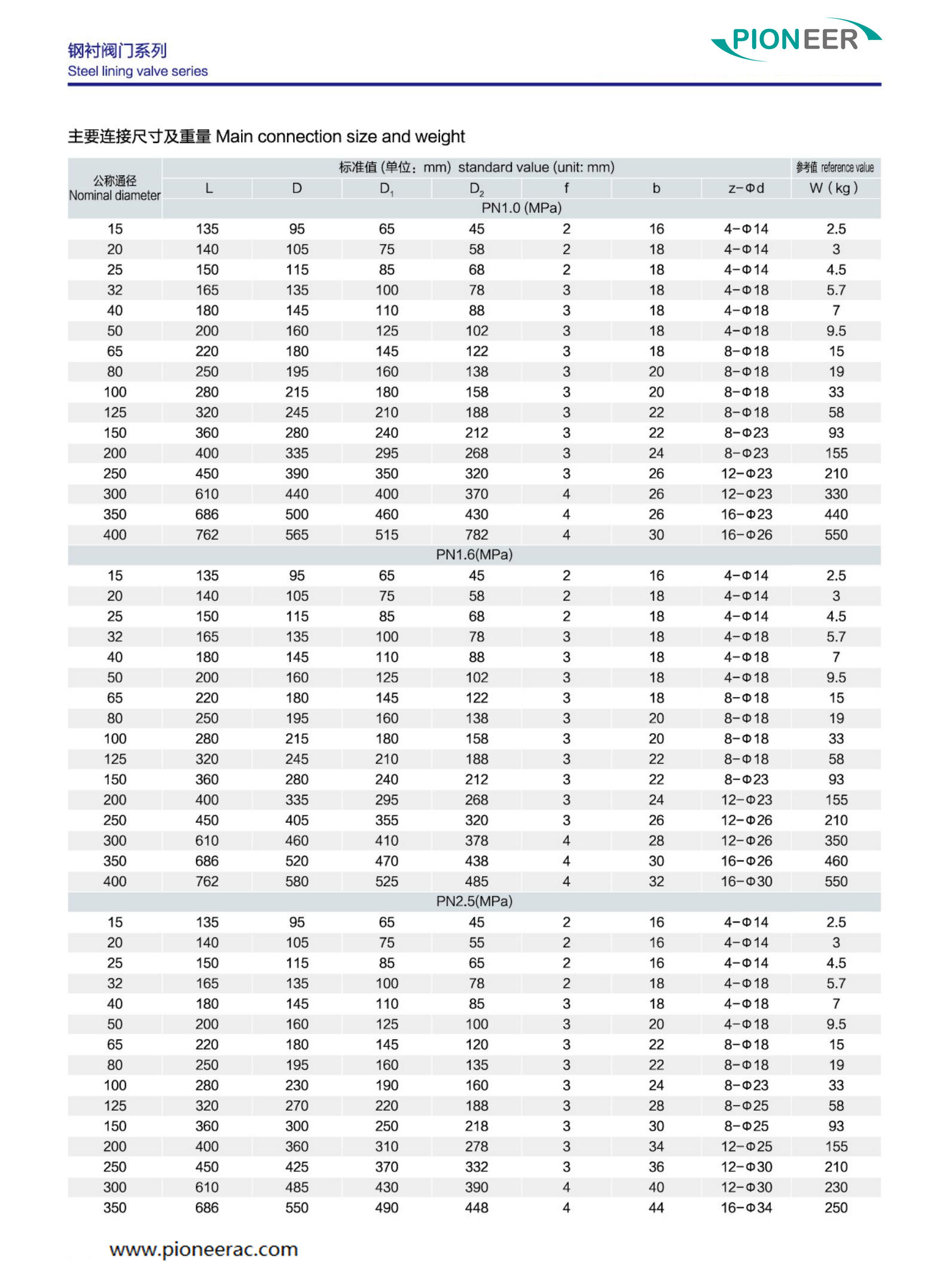

Technical Data:
