Check Valve

  • H44F46-150Lb Swing Check Valve
  • H44F46-150Lb Swing Check Valve
  • H44F46-150Lb Swing Check Valve
  • H44F46-150Lb Swing Check Valve
H44F46-150Lb Swing Check ValveH44F46-150Lb Swing Check ValveH44F46-150Lb Swing Check ValveH44F46-150Lb Swing Check Valve

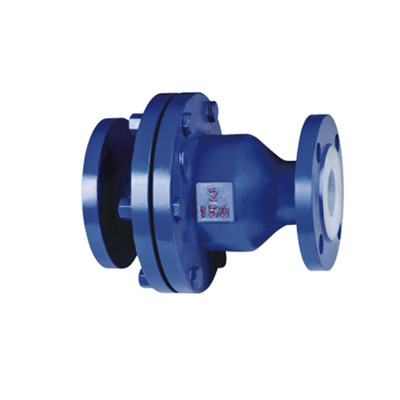

H44F46-150Lb Swing Check Valve

  • Product description: Opening & closing parts rely on the flow of media and power to open or close, in order to prevent media backflow valve called check valve.Check valves belong to automatic valves, mainly used for one-w
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Design and manufacture
 GB/T 12236
Structure length
 GB/T12221 (short-long)
Nominal Diameter
 DN15~DN500(mm)
Nominal pressure
 PN0.6~1.6(MPa)
Flange size
 HG/T20592
Pressure test
 GB/T 13927
Driving mode
 manual
Lining MaterialWe offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M
Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts.

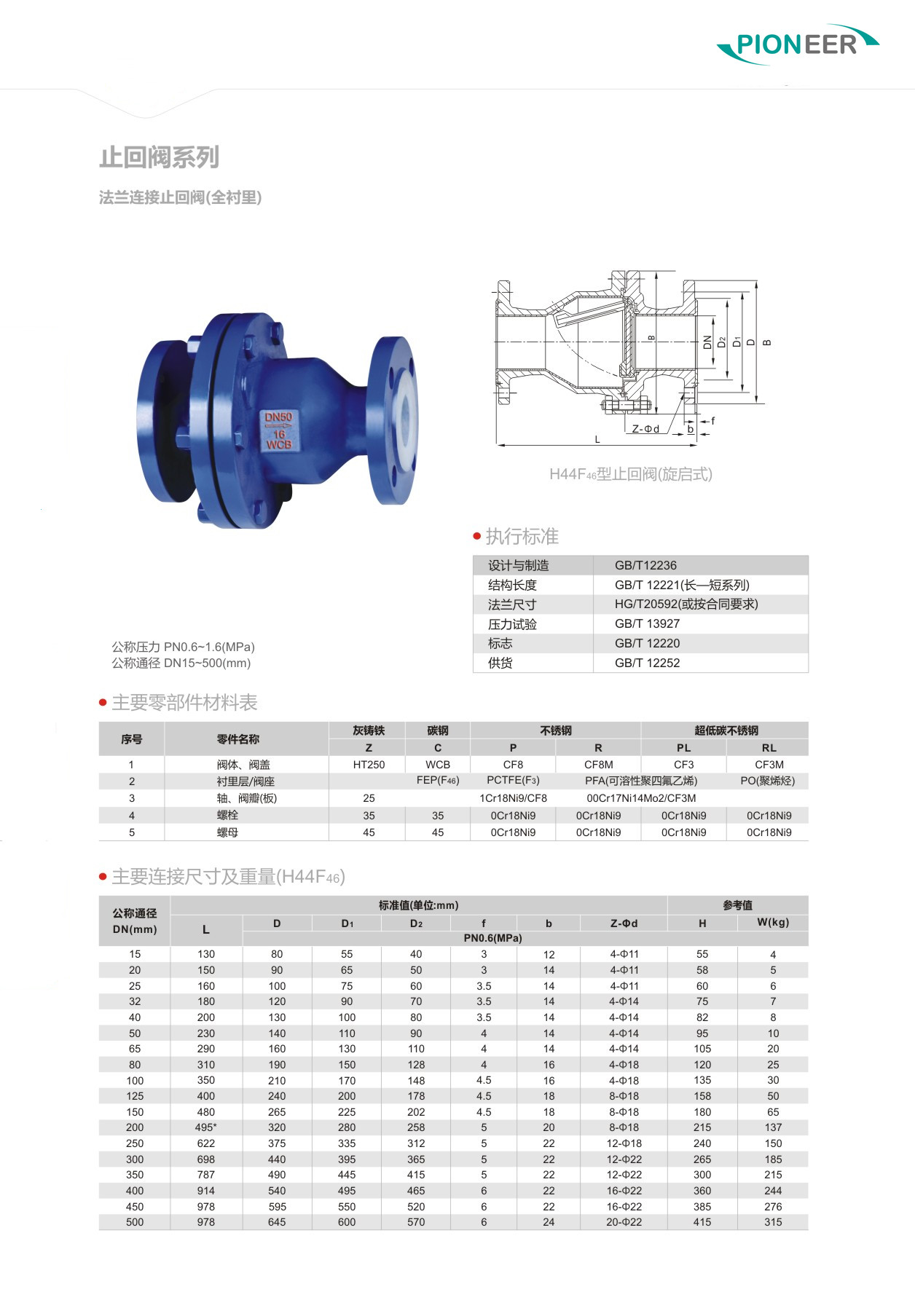

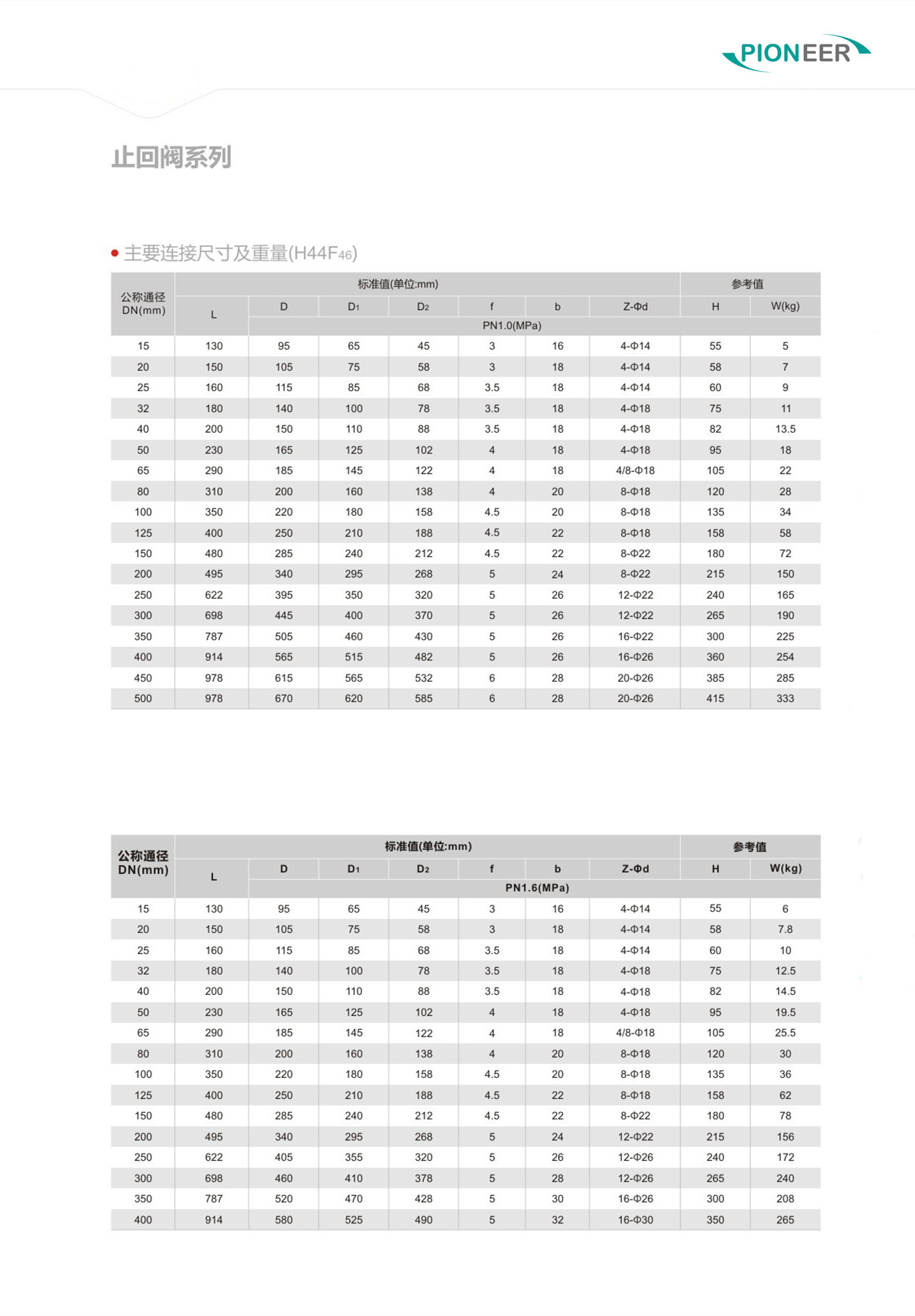

Technical Data:

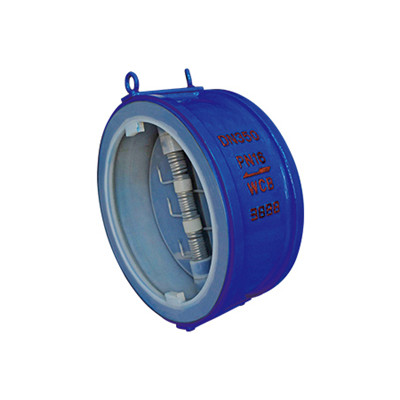

PREVIOUS：H42F46-16C Lift Check Valve NEXT：H74F46-16C Wafer Swing Check Valve

Related Products

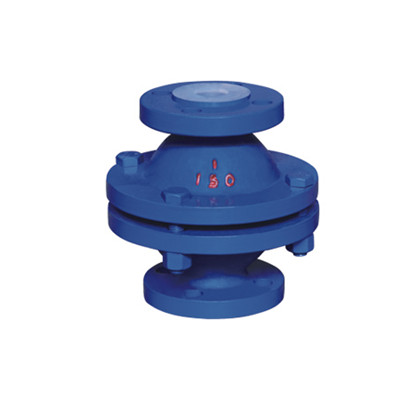

H40F46-16C Vertical lift Check Valve(New type)

H40F46-16C Vertical lift Check

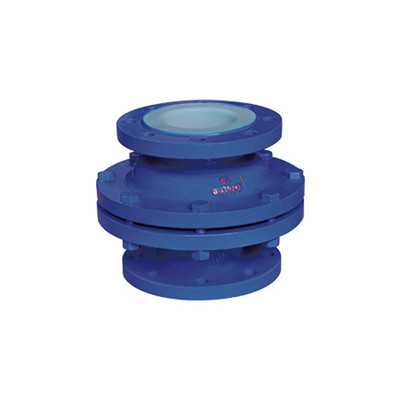

H41F46-10C Horizontal Check Valve
