Check Valve

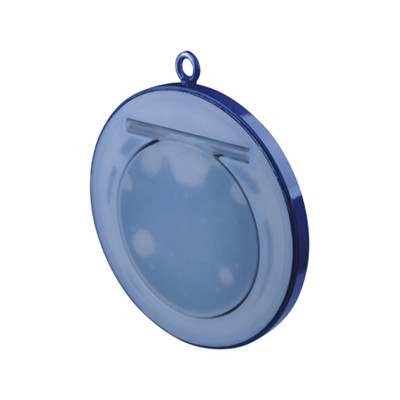

  • H74F46-16C Wafer Swing Check Valve
  • H74F46-16C Wafer Swing Check Valve
  • H74F46-16C Wafer Swing Check Valve
  • H74F46-16C Wafer Swing Check Valve
H74F46-16C Wafer Swing Check ValveH74F46-16C Wafer Swing Check ValveH74F46-16C Wafer Swing Check ValveH74F46-16C Wafer Swing Check Valve

H74F46-16C Wafer Swing Check Valve

  • Product description: Opening & closing parts rely on the flow of media and power to open or close, in order to prevent media backflow valve called check valve.Check valves belong to automatic valves, mainly used for one-w
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Design and manufacture
 JB/T 8937  API6D
Structure length
 Q/NFL-06-99 / JB/T8937( Enterprise's standard)
Nominal Diameter
 DN40~500(mm)  NPS 11/2~20
Nominal pressure
 PN0.6~1.6(MPa)  ANSI 150Lb
Flange size
 HG/T20592 /ASME B16.5
Pressure test
 API 598/GB 13927
Driving mode
 manual
Lining MaterialWe offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M
Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts.

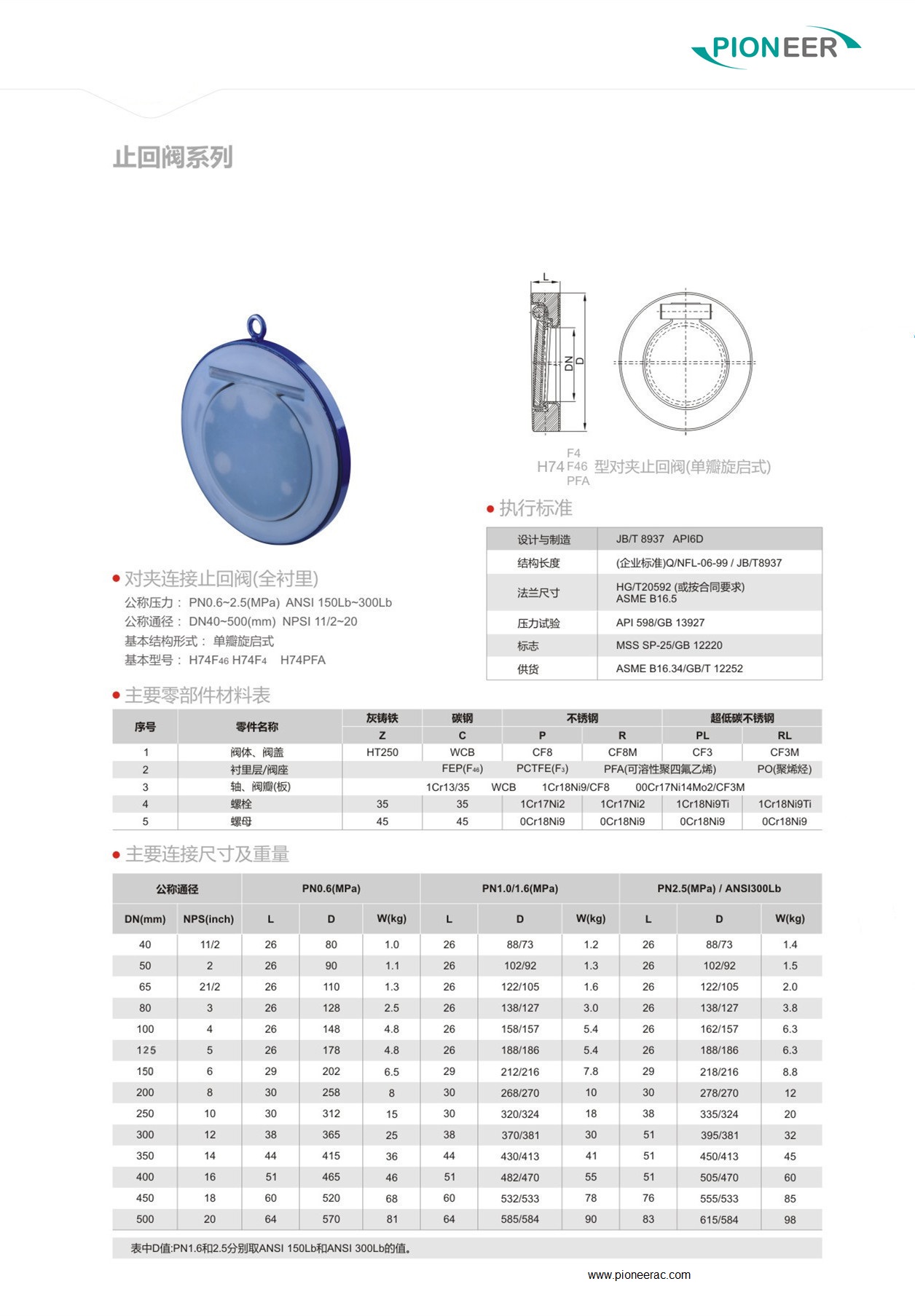

Technical Data:
