Plug Valve

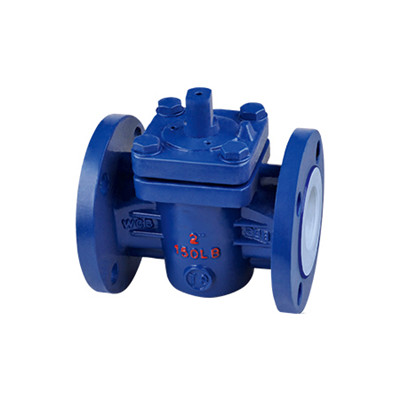

X41F ANSI Jacketed Plug Valve
- Product description: The sleeve type of jacketed plug valve has simple structure, rapid opening and closing, small flow resistance, convenient maintenance, good sealed performance. Widely used in chemical, petroleum and o
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
|
Design and manufacture |
API 599/API 6D/GB/T12240 |
|
Structure length |
ISO 5752(short-long) |
|
Nominal Diameter |
NPS1/2~12 |
|
Nominal pressure |
ANSI CL150 |
|
Flange size |
ASME B16.5 |
|
Pressure test |
API 598 |
|
Driving mode |
manual,Worm gear,electrical,pneumatic |
Lining Material:
We offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M
Temperature:PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts.

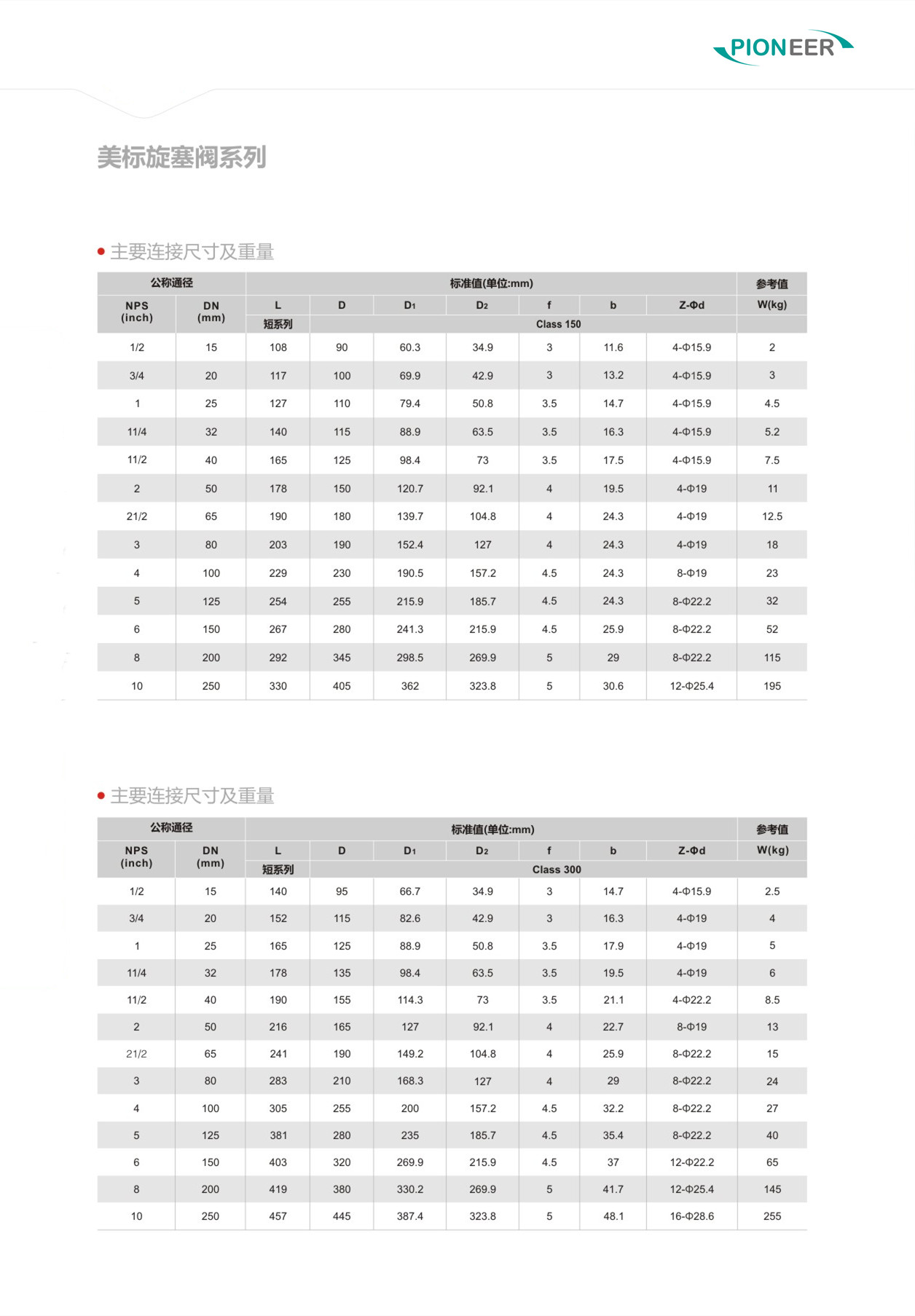

Technical Data:
