Plug Valve

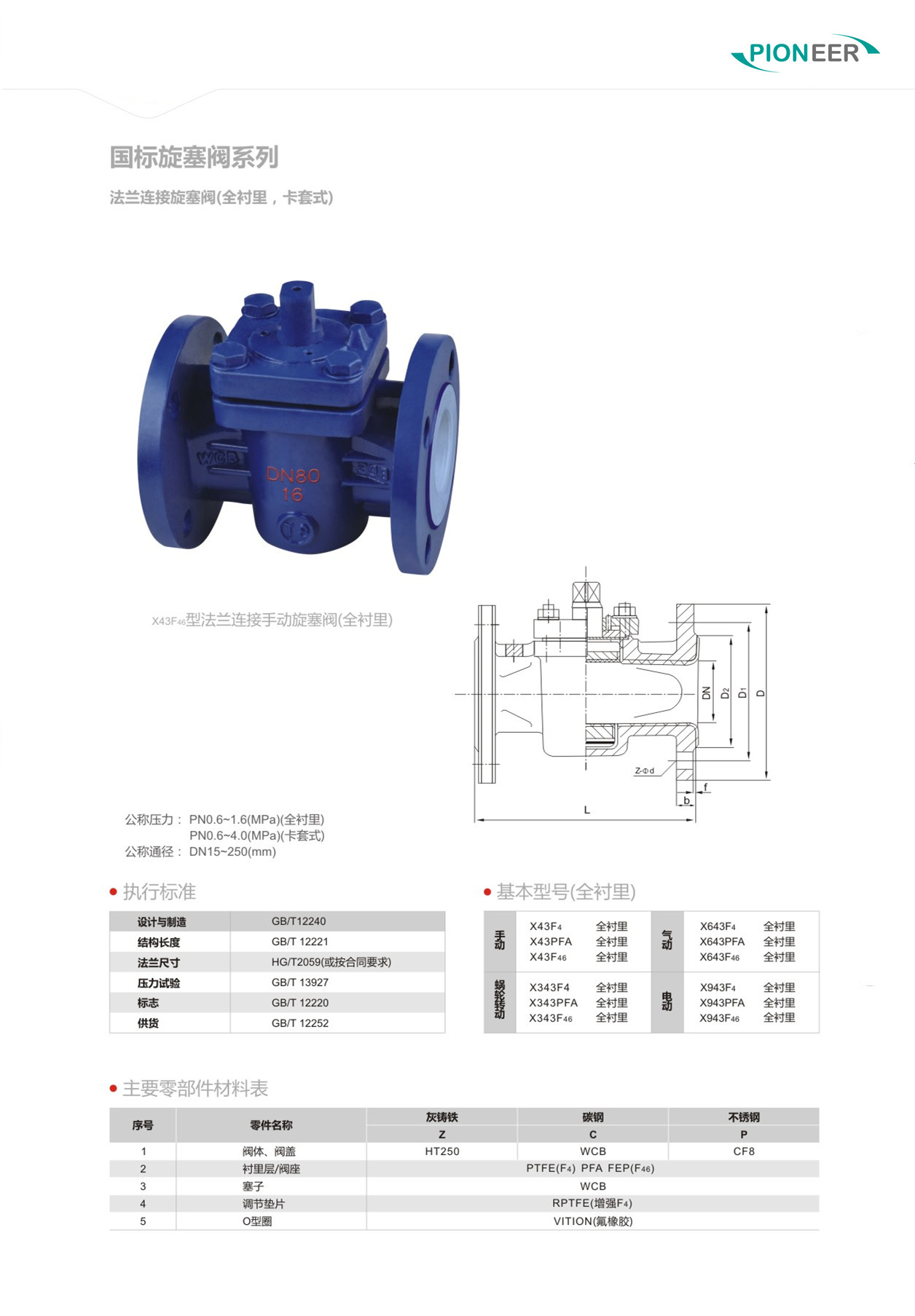

X341F46-16C Plug Valve
- Product description: The plug valve is a valve that uses the plug body with a hole as the opening and closing part and realizes the opening and closing action by the rotation of the plug body and the valve stem.Plug valve
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
|
Design and manufacture |
GB/T12240 |
|
Structure length |
GB/T12221 |
|
Nominal Diameter |
DN15~300mm |
|
Nominal pressure |
PN0.6~1.6(MPa) |
|
Flange size |
HG/T20592 |
|
Pressure test |
GB/T13927 |
|
Driving mode |
manual,Worm gear,electrical,pneumatic |
Lining Material:
We offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M
Temperature:PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts.

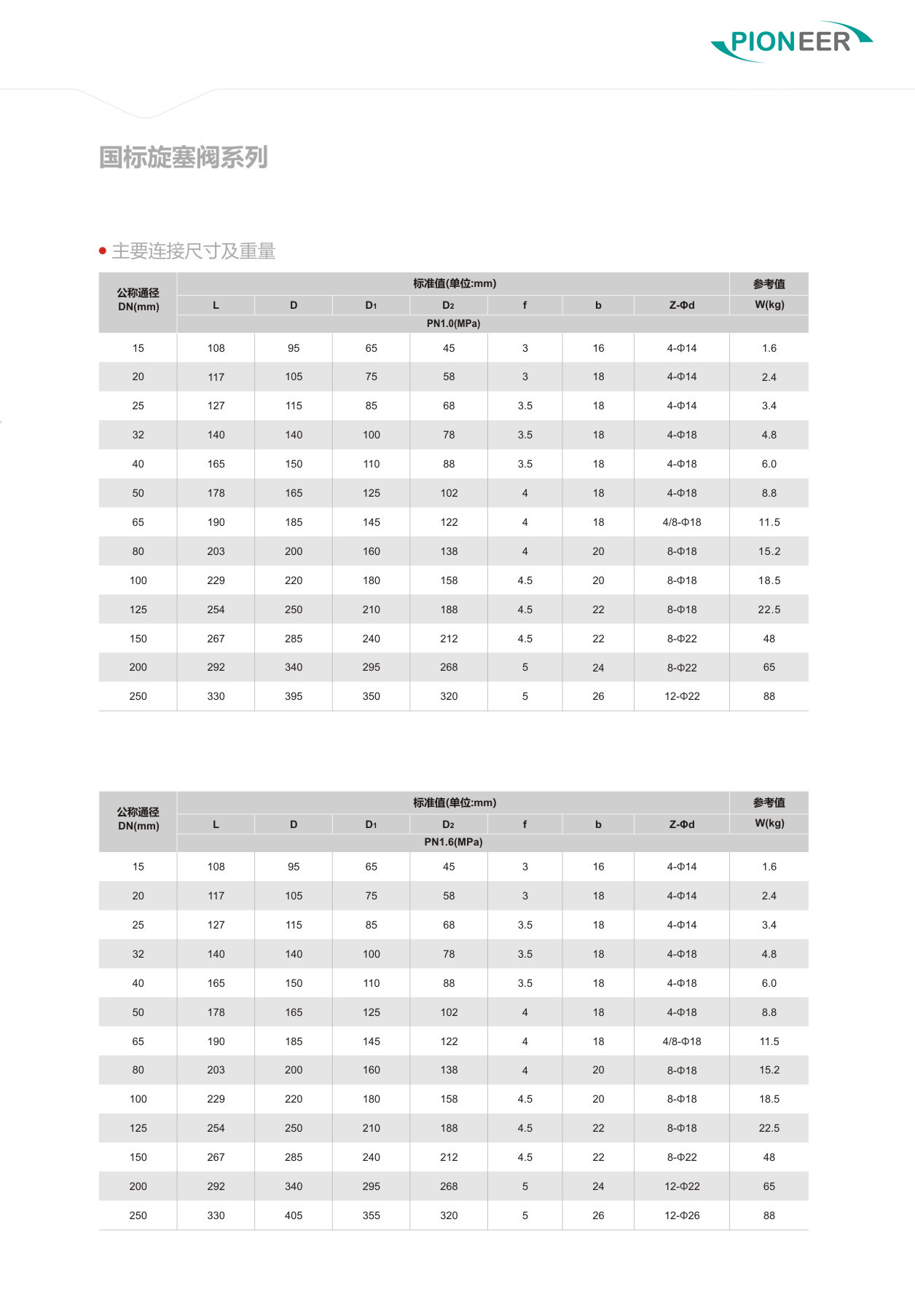

Technical Data:
