Check Valve

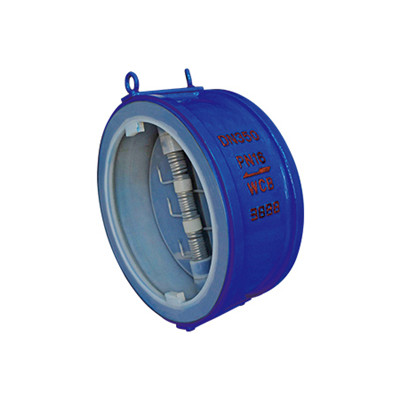

H76F46-16C Butterfly Check Valve
- Product description: Opening & closing parts rely on the flow of media and power to open or close, in order to prevent media backflow valve called check valve.Check valves belong to automatic valves, mainly used for one-w
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
|
Design and manufacture |
GB/T 12235 |
|
Structure length |
GB/T12221/ HG/T3704 |
|
Nominal Diameter |
DN15~500(mm) |
|
Nominal pressure |
PN0.6~1.6(MPa) ANSI 150Lb |
|
Flange size |
HG/T20592 /ASME B16.5 |
|
Pressure test |
GB 13927 |
|
Driving mode |
manual |
Lining Material:
We offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M
Temperature:PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts.

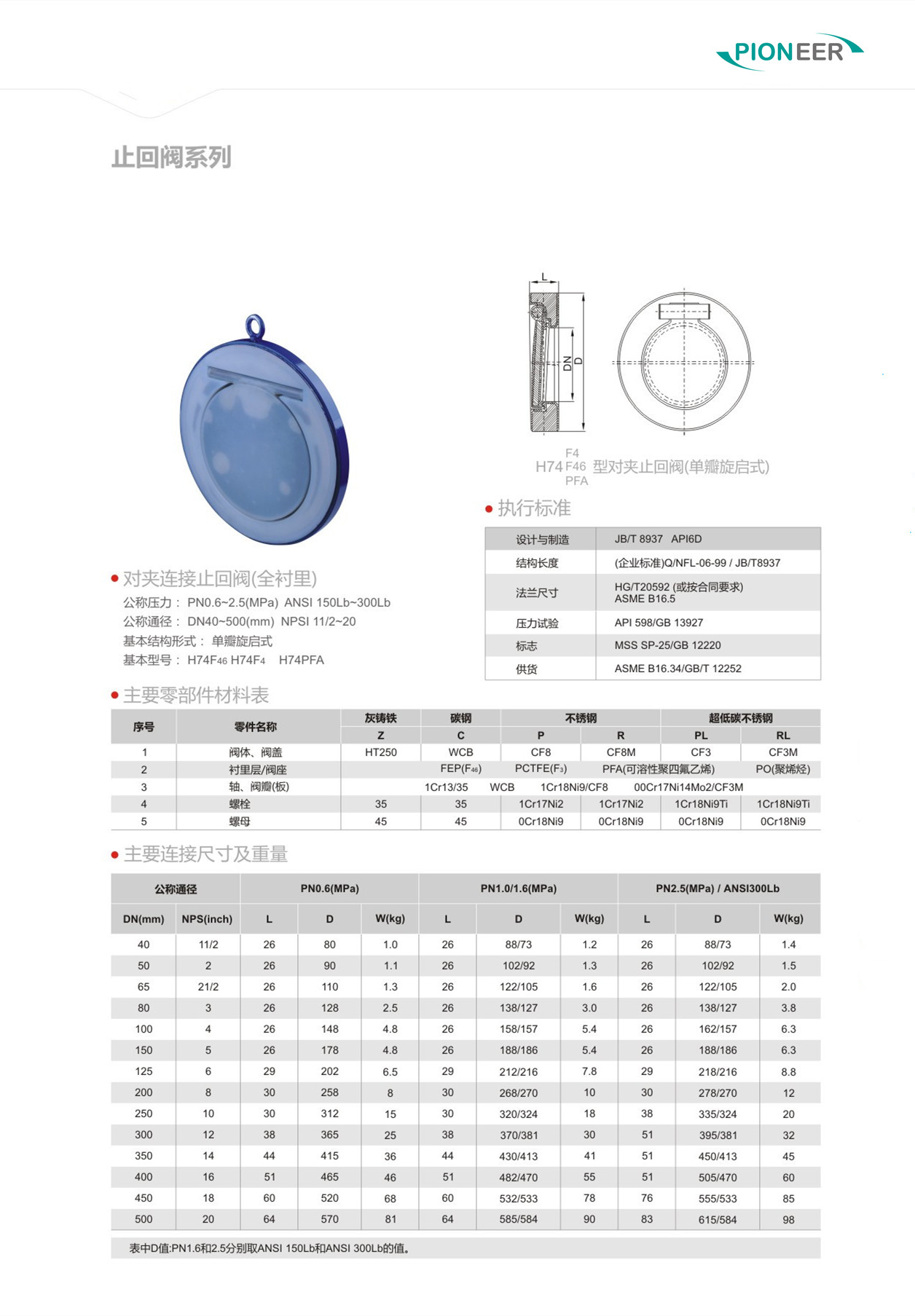

Technical Data:
