PVDF Fittings

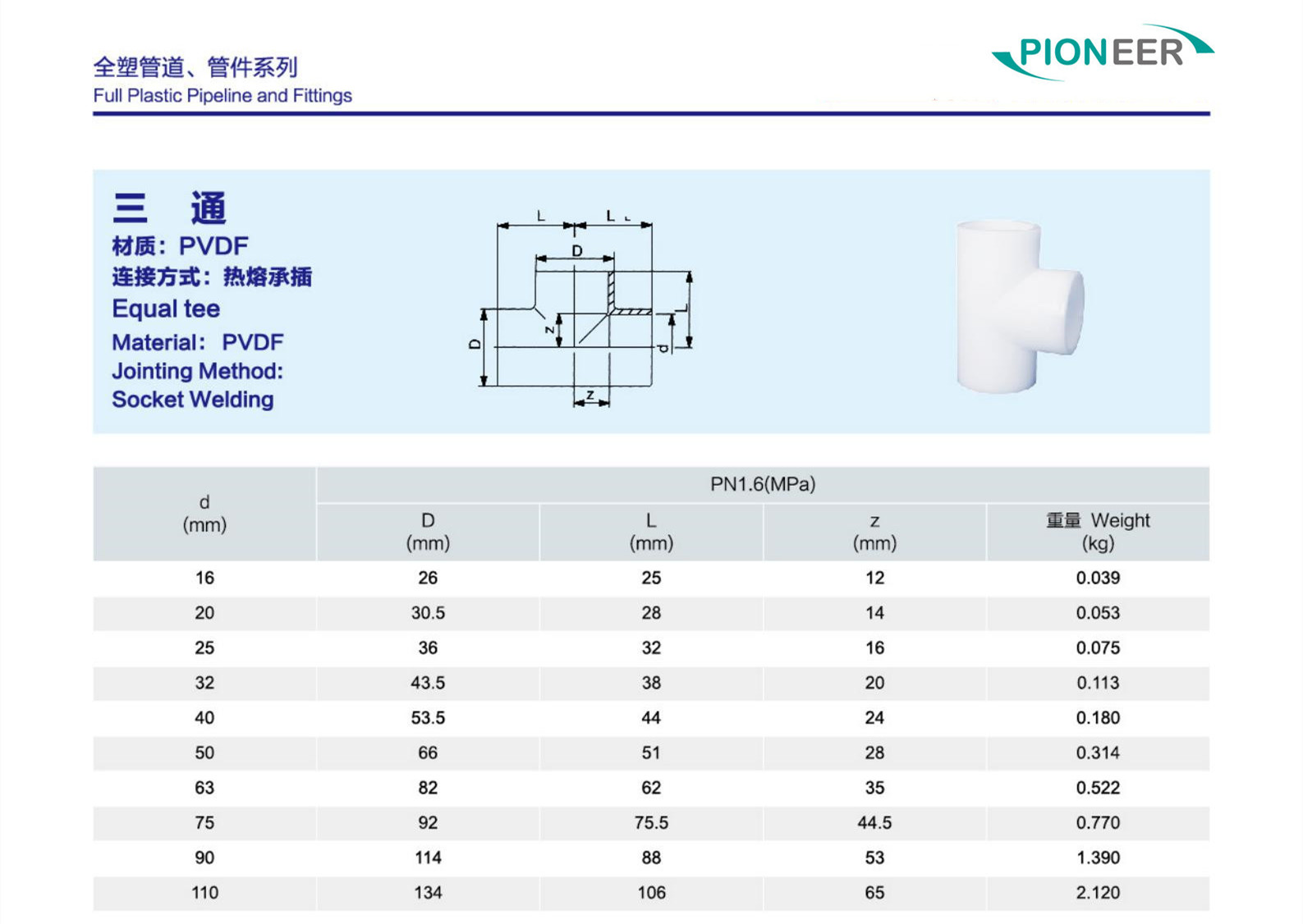

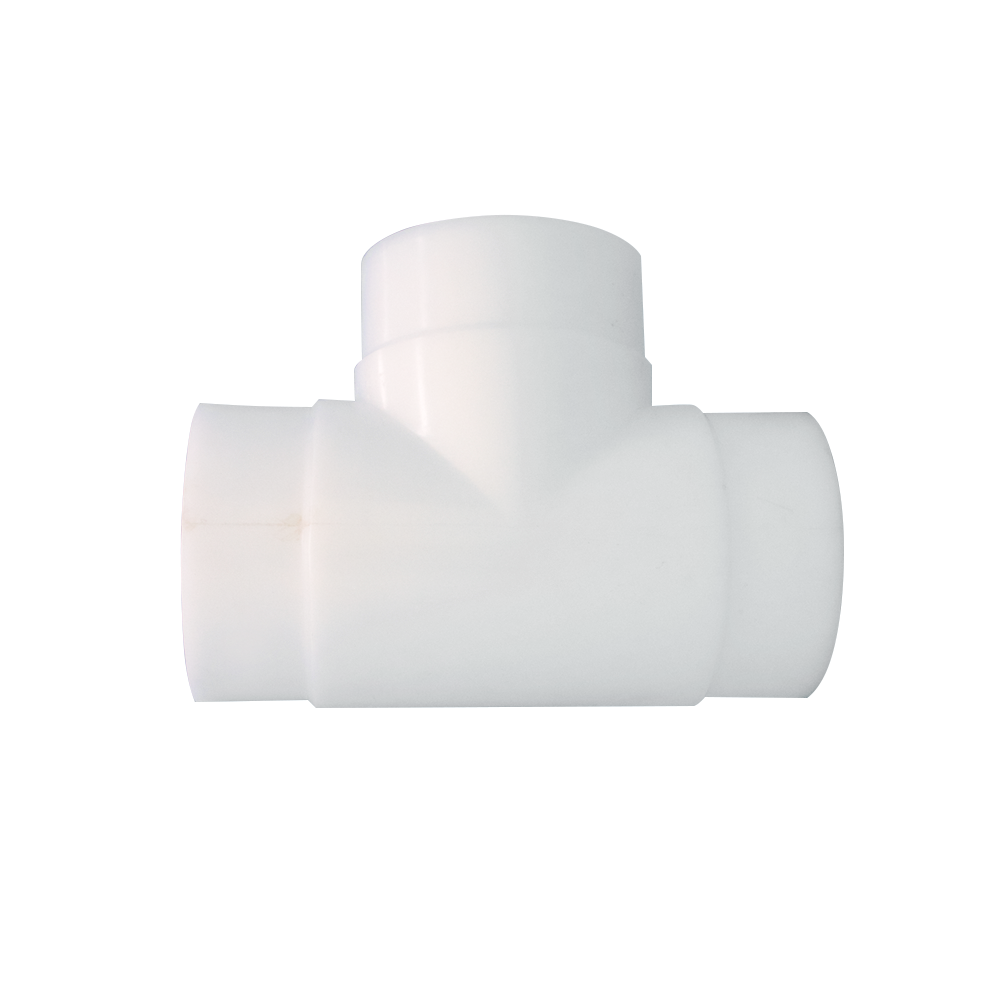

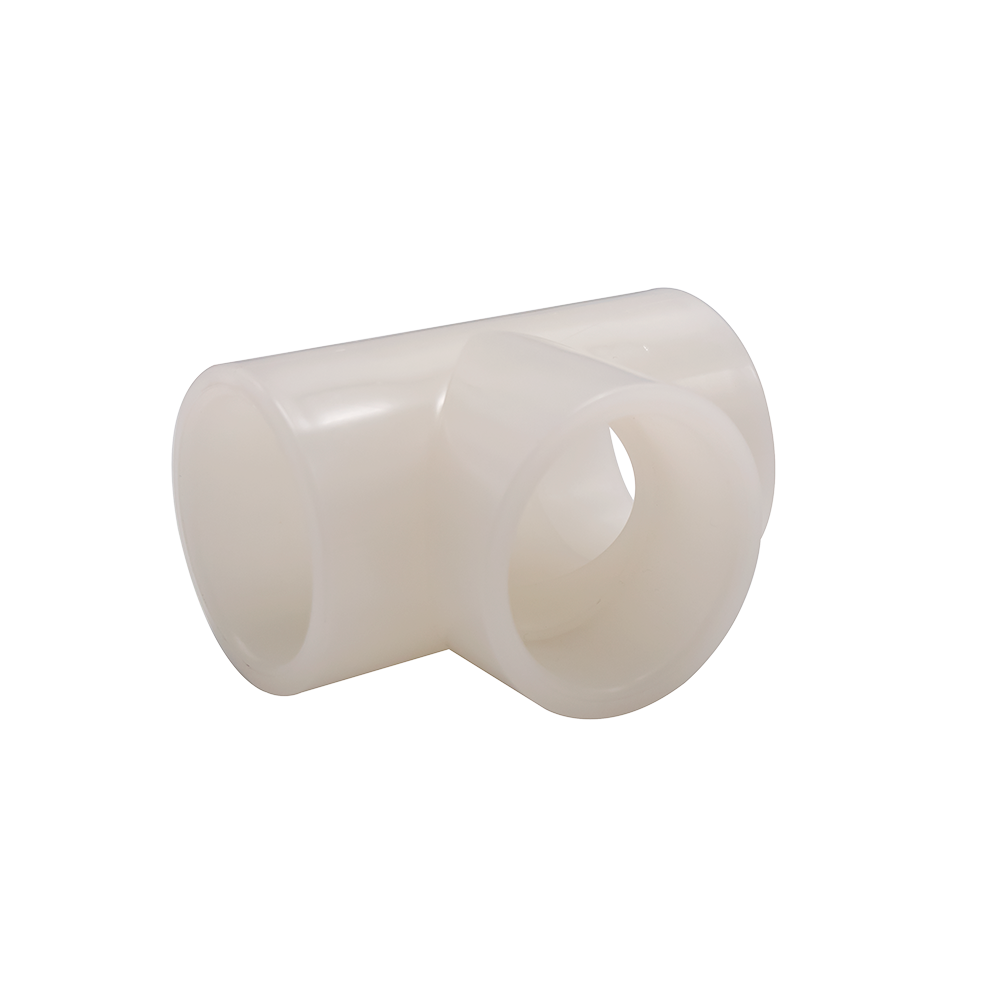

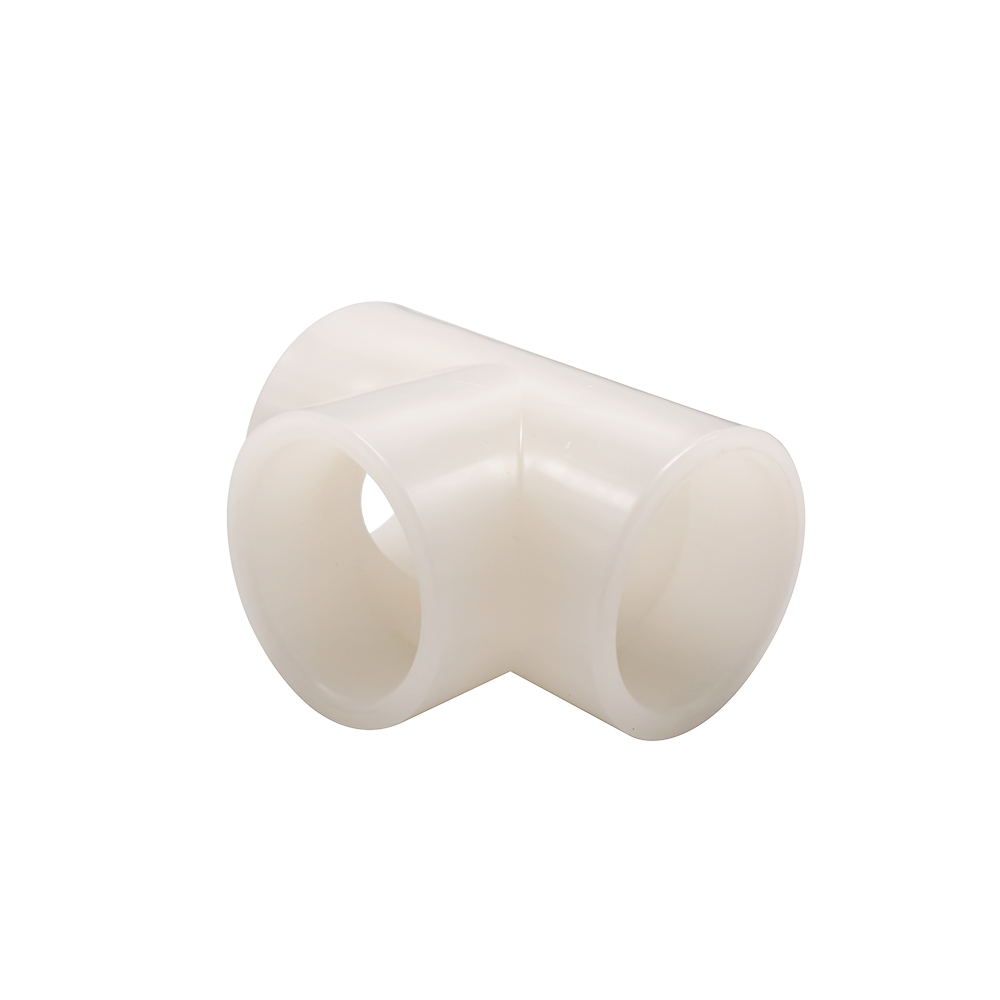

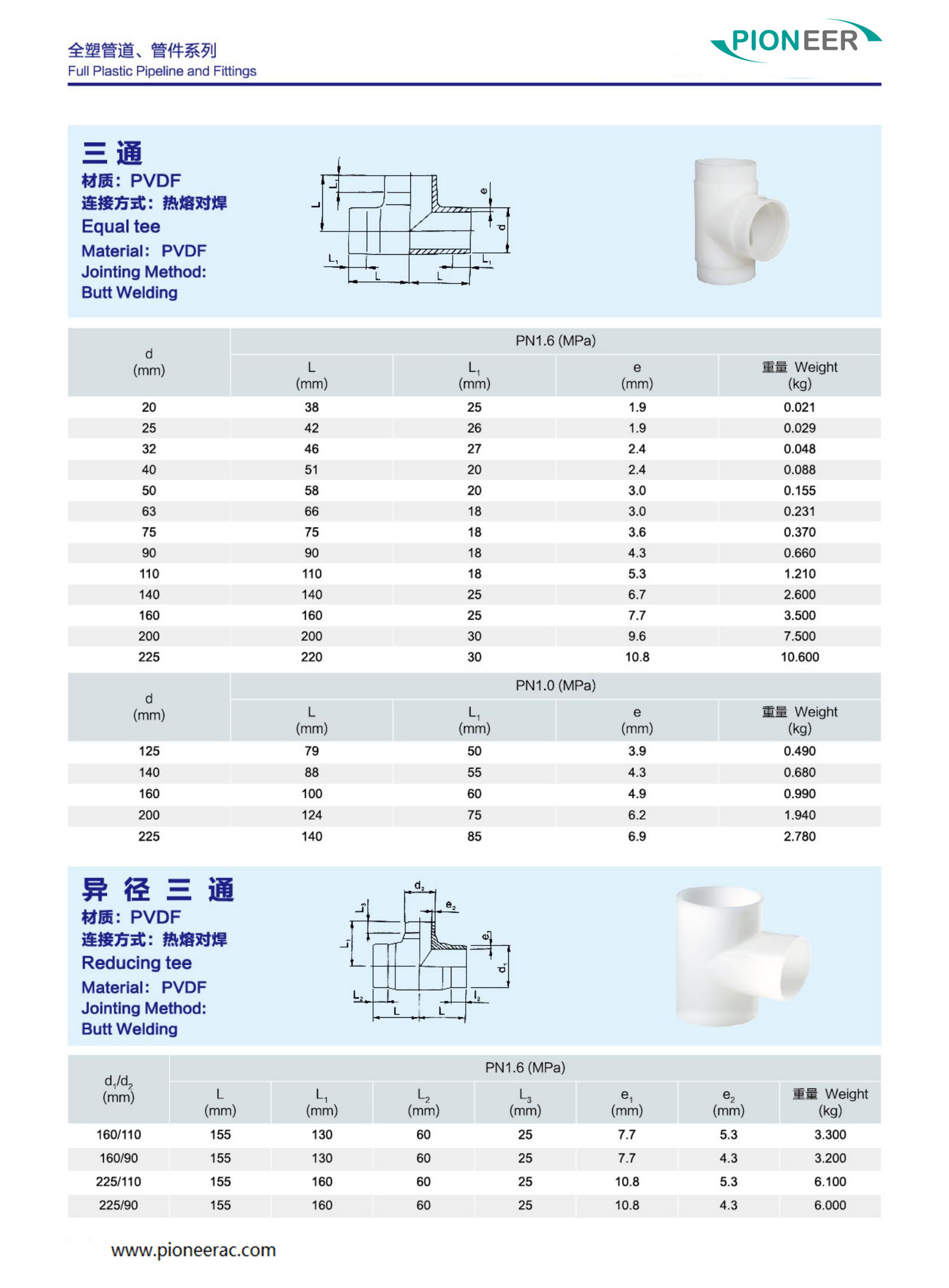

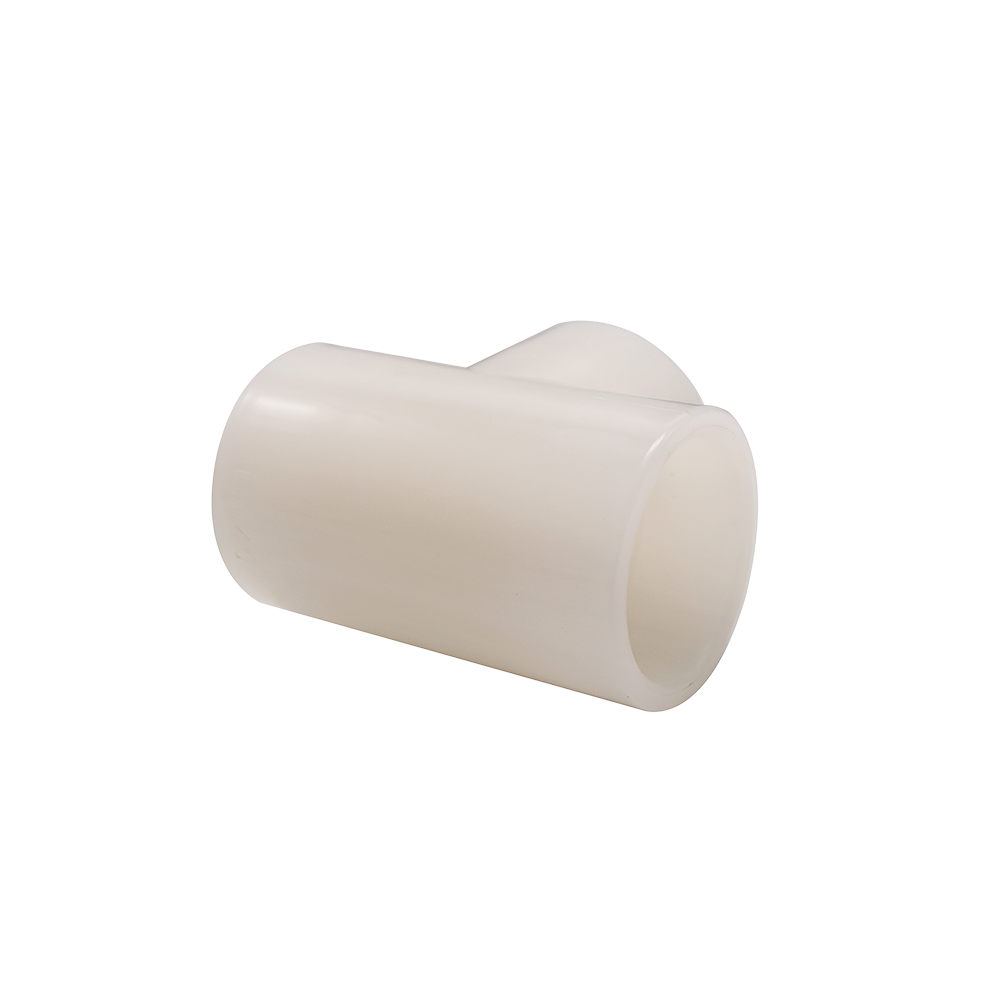

PVDF Equal Tee
- Product description: PVDF Equal Tee Manufacture Standard:ISO10931 Pressure class: PN 1.6(MPa)
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
| Manufacture and design | ISO DIN 10931 |
| Nominal diameter |
D26~D134(mm) |
| Length | 25~106mm |
|
Pressure test |
DIN, ISO |
| Connection |
Butt,socket welding |
Benefits&Features：
* Good weld ability
* High creep resistance
* Expansive application area
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products
Pressure Rating:
PN1.6(MPa）
Temperature:
*PVDF:-50°C ~ 150°C
*PVDF:-50°C ~ 150°C
Joining Technology
* Socket welding
Standard
* DIN ISO 10931
Materials:
PVDF
PREVIOUS：PVDF 90 Degree Elbow
NEXT：PVDF 45 Degree Elbow
