PVDF Fittings

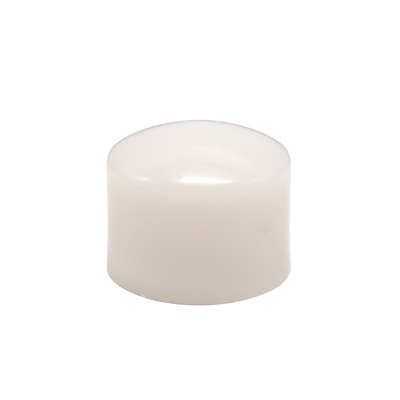

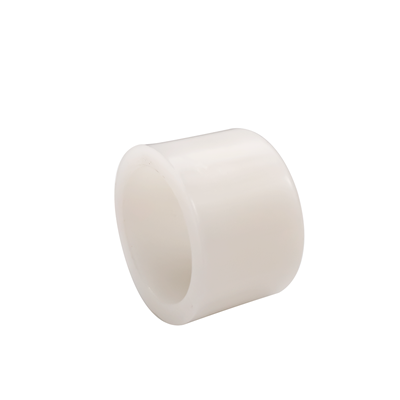

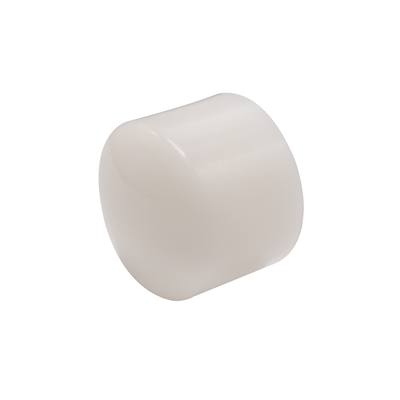

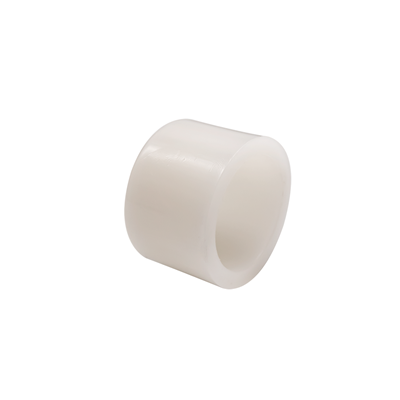

PVDF End Cap
- Manufacture Standard:ISO10931
- Pressure class: PN 1.6(MPa)
- Product description: PVDF End Cap
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:

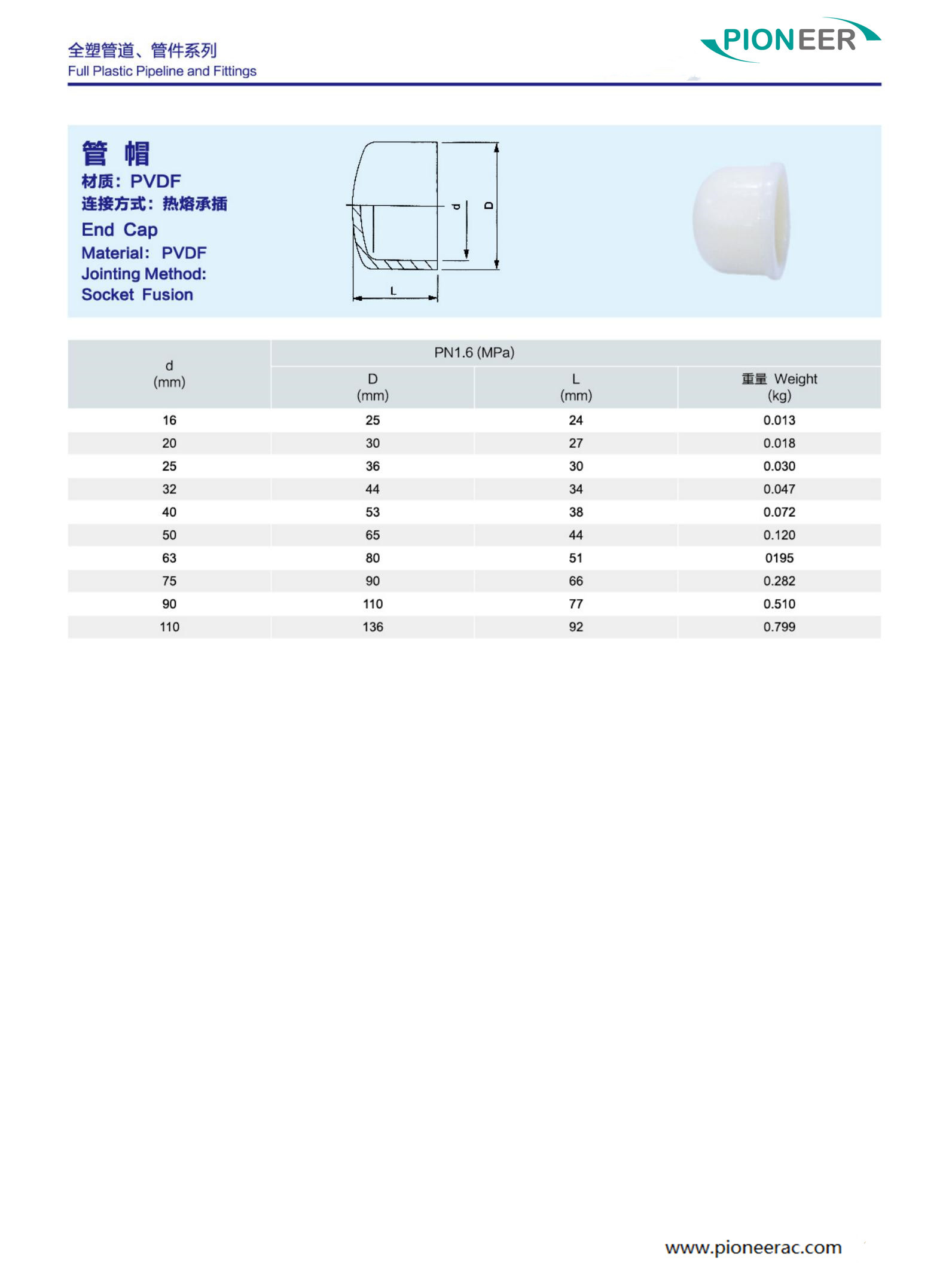

| Manufacture and design | ISO DIN 10931 |
| Nominal diameter |
D25~D136(mm) |
| Length | 26~92mm |
|
Pressure test |
DIN, ISO |
| Connection |
socket welding |
Benefits&Features：
* Good weld ability
* High creep resistance
* Expansive application area
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products
Pressure Rating:
PN1.6(MPa）
Temperature:
*PVDF:-50°C ~ 150°C
*PVDF:-50°C ~ 150°C
Joining Technology
* Socket welding
Standard
* DIN ISO 10931
Materials:
PVDF
