PVDF Fittings

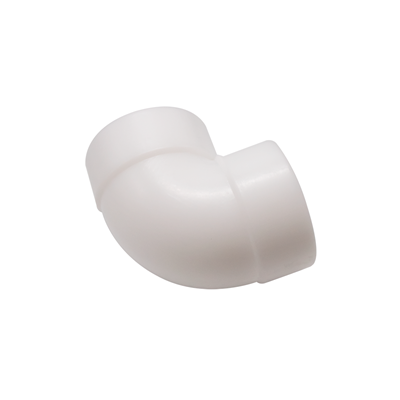

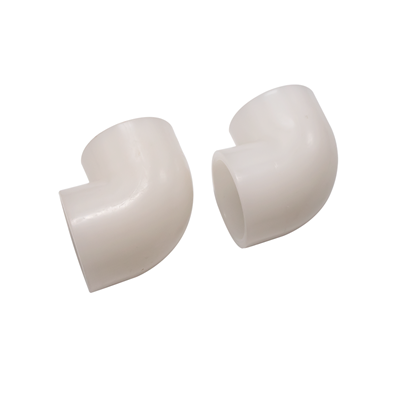

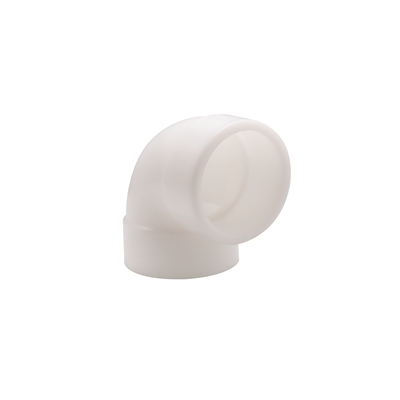

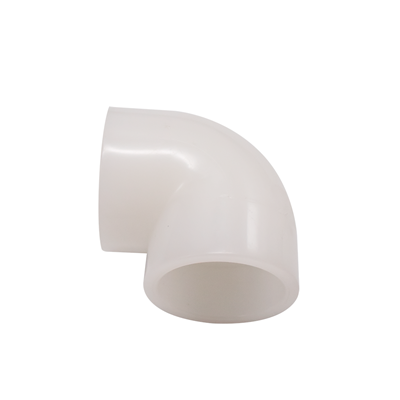

PVDF 90 Degree Elbow

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Benefits&Features：

* Good weld ability
* High creep resistance
* Expansive application area
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products

Pressure Rating:
SDR21 ISO S10 PN16(MPa）

Temperature:
*PVDF:-50°C ~ 150°C

Joining Technology

* Socket welding
Standard
* DIN ISO 10931
Materials:

PVDF

PREVIOUS：PVDF End Cap NEXT：PVDF Equal Tee
