PVDF Fittings
PVDF Coupling Connector/Reducer

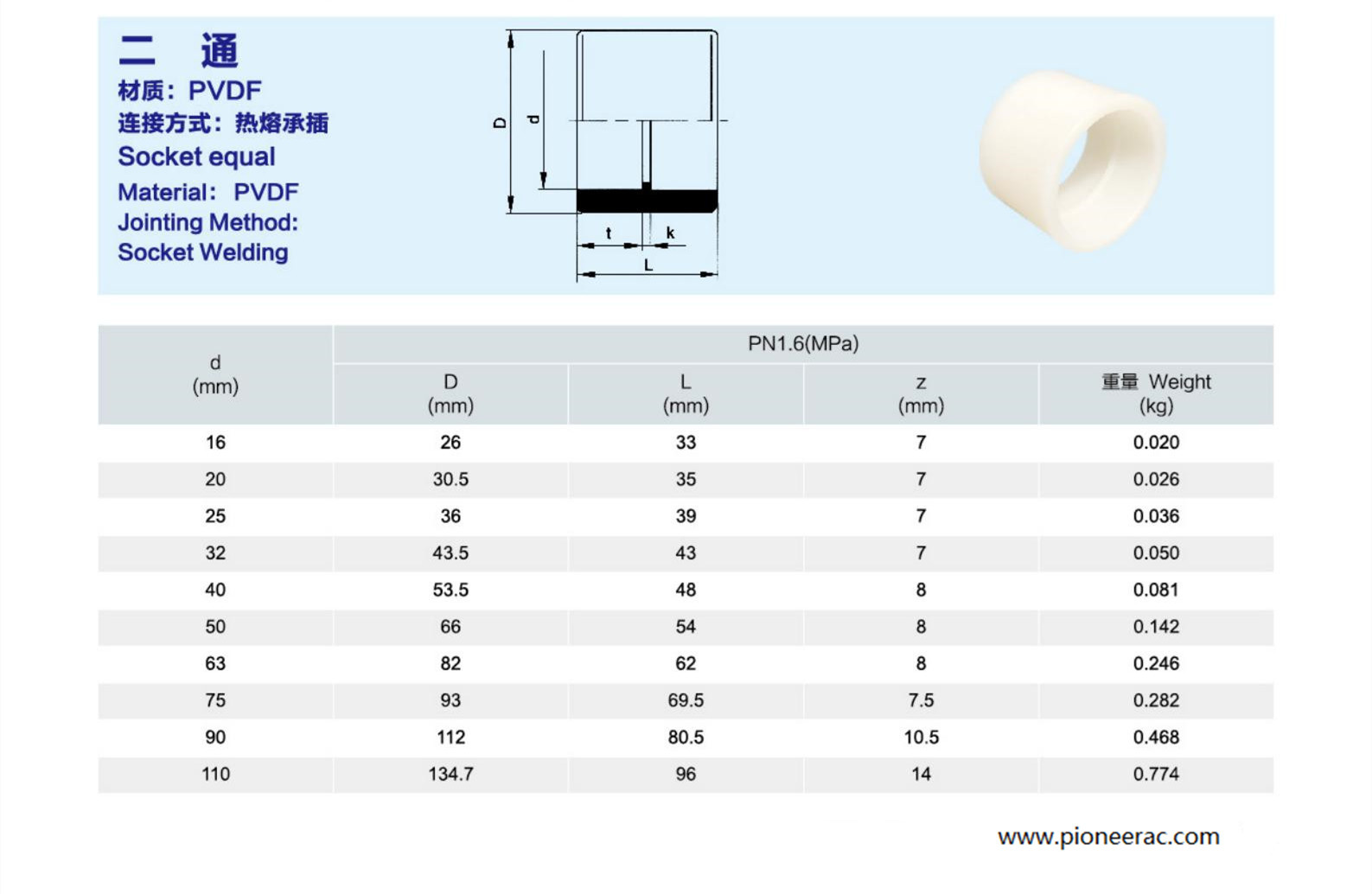

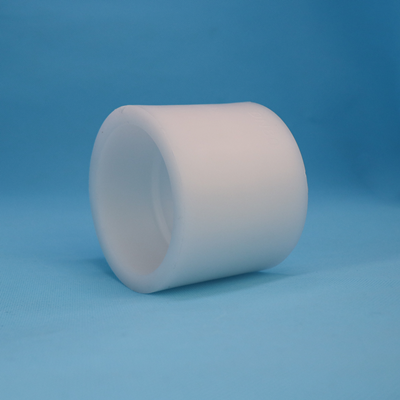

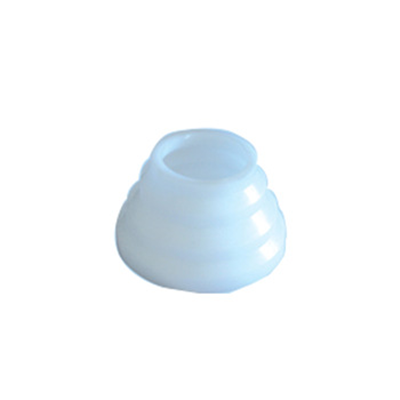

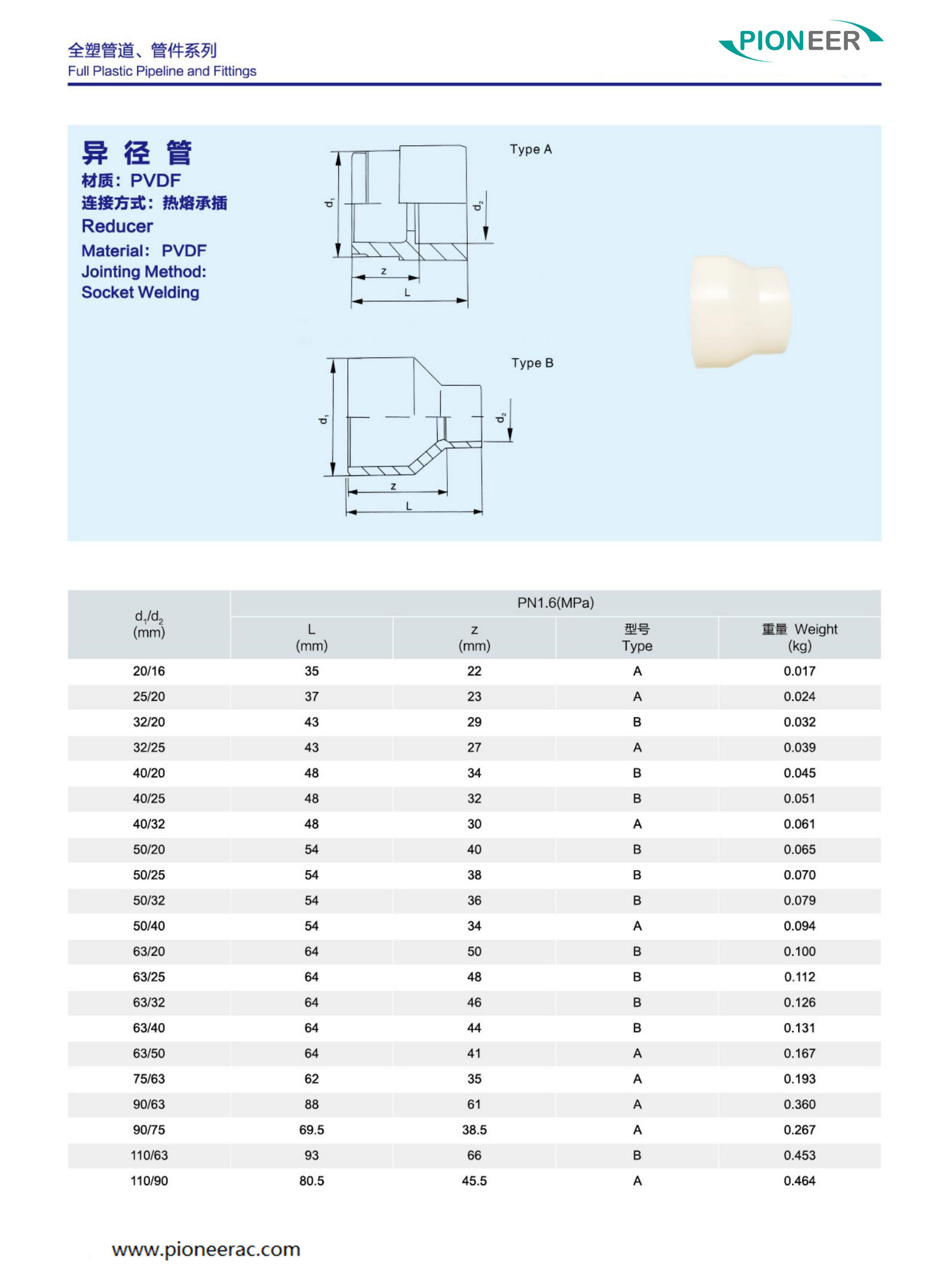

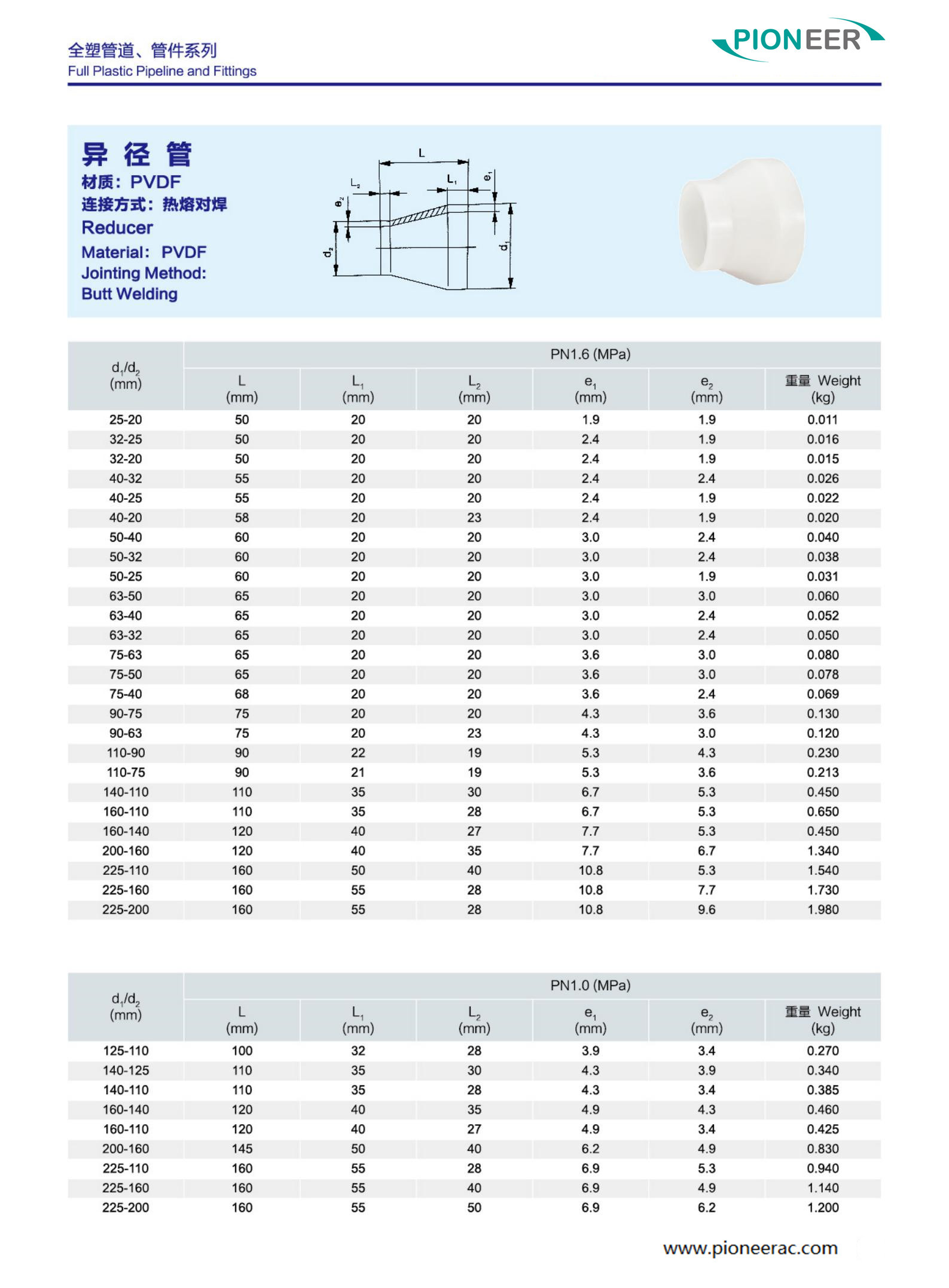

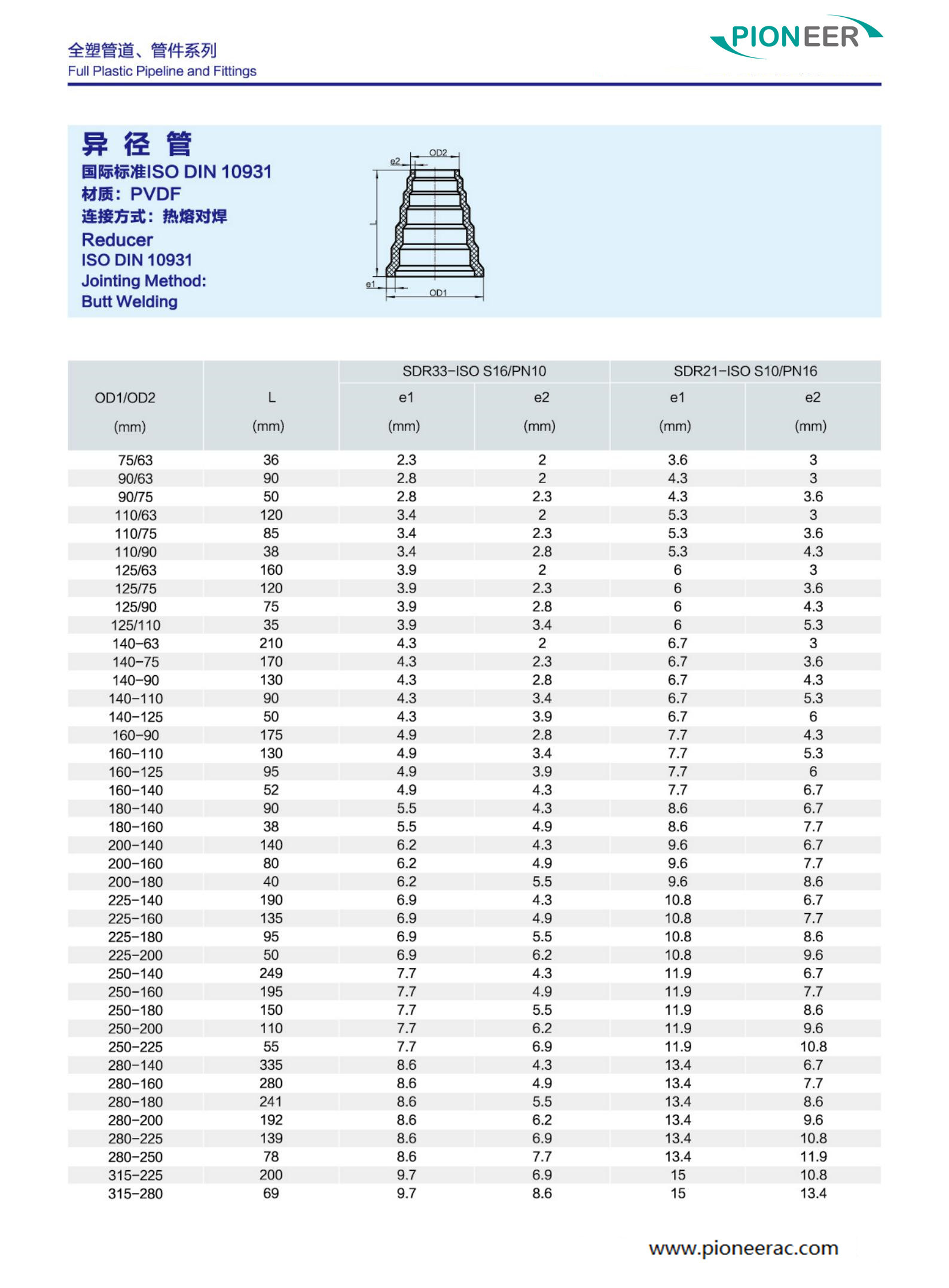

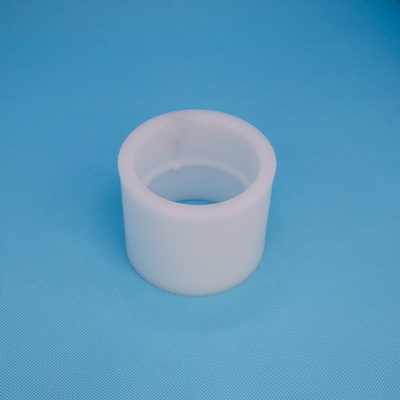

- Product description: PVDF Coupling Connector/Reducer
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
| Manufacture and design | ISO DIN 10931 |
| Nominal diameter |
d20~d225(mm) |
| Length | 33~96mm |
|
Nominal Pressure |
PN1.6/PN1.0 |
| Connection |
Butt,socket welding |
Benefits&Features：
* Good welding ability
* High creep resistance
* Expansive application area
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products
Pressure Rating:
PN1.6/PN1.0(MPa)
Temperature:
*PVDF:-50°C ~ 150°C
*PVDF:-50°C ~ 150°C
Joining Technology
* Socket welding
* Butt welding
Standard
* DIN ISO 10931
Materials:
PVDF
